Configure AI agent conversations

AI agent conversations let your users interact naturally with your agent by asking questions and getting relevant answers or help. Instead of building complex rules, you set up conversations using simple prompts and instructions.

Our prompt-based configuration makes it easy to create flexible, human-like dialogues that can handle anything from basic questions to more advanced tasks. You only add extra logic when needed, keeping the setup simple and efficient.

This approach is more efficient because it:

• Understands user intent more effectively
• Responds with contextual relevance
• Eliminates the need for complex scripting or flowchart-like designs

Key components of the AI Agent conversation

The conversation design is modular and built with flexibility in mind. You can configure the following:

• Start triggers – Detect user intent and launch the appropriate conversation.
• Prompts – Define how the AI agent interacts, asks questions, and provides answers.
• Actions – Collect user inputs, handle fallback scenarios, or trigger backend logic.
• Variables – Store user inputs and context to maintain continuity throughout the conversation.
• Workflows – Integrate with backend systems to fetch, process, or update data.

---

Setup agent conversations

You can set up agent conversations using Start trigger and Prompts, which define how and when the AI agent initiates and responds during a conversation.

To set up agent conversations, follow these steps:

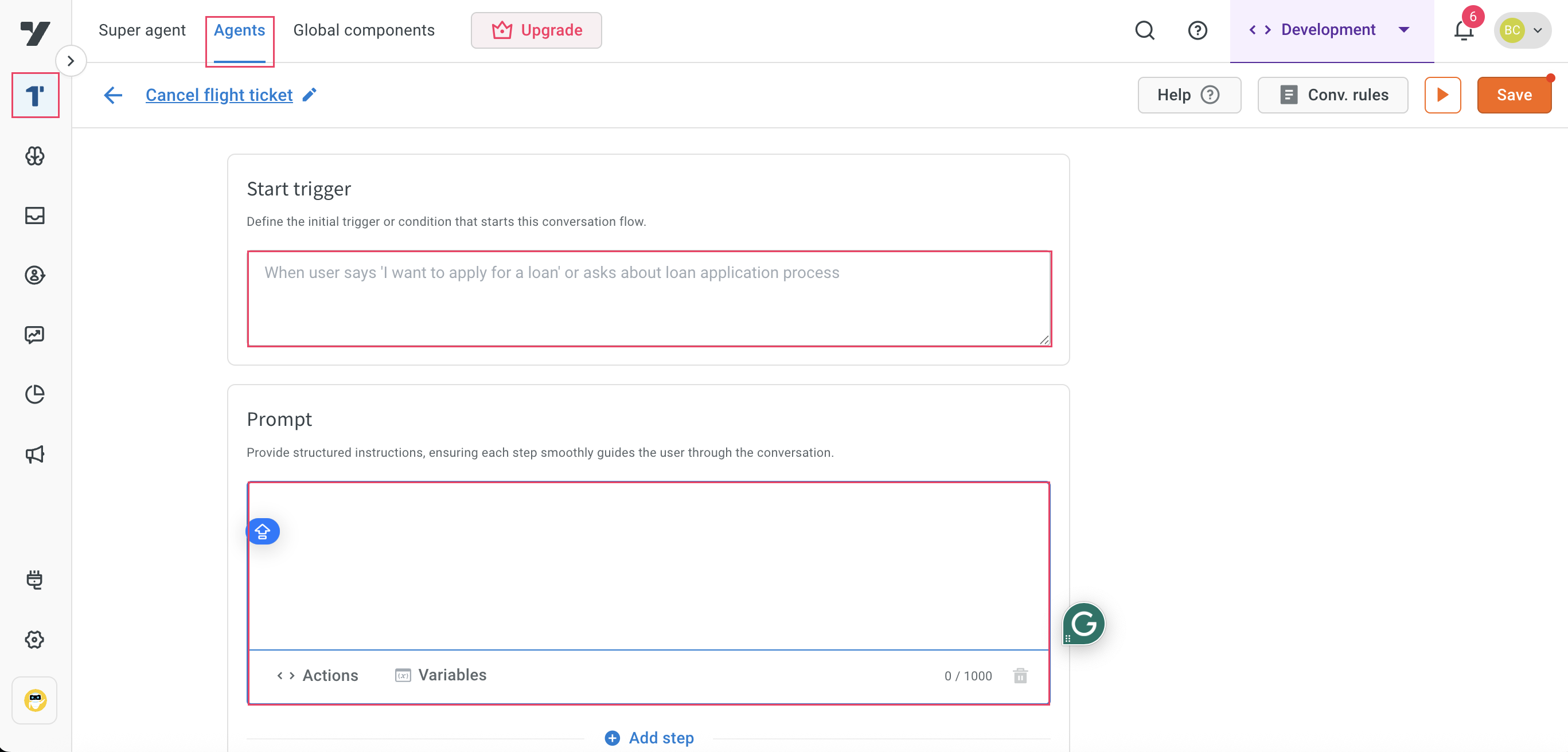

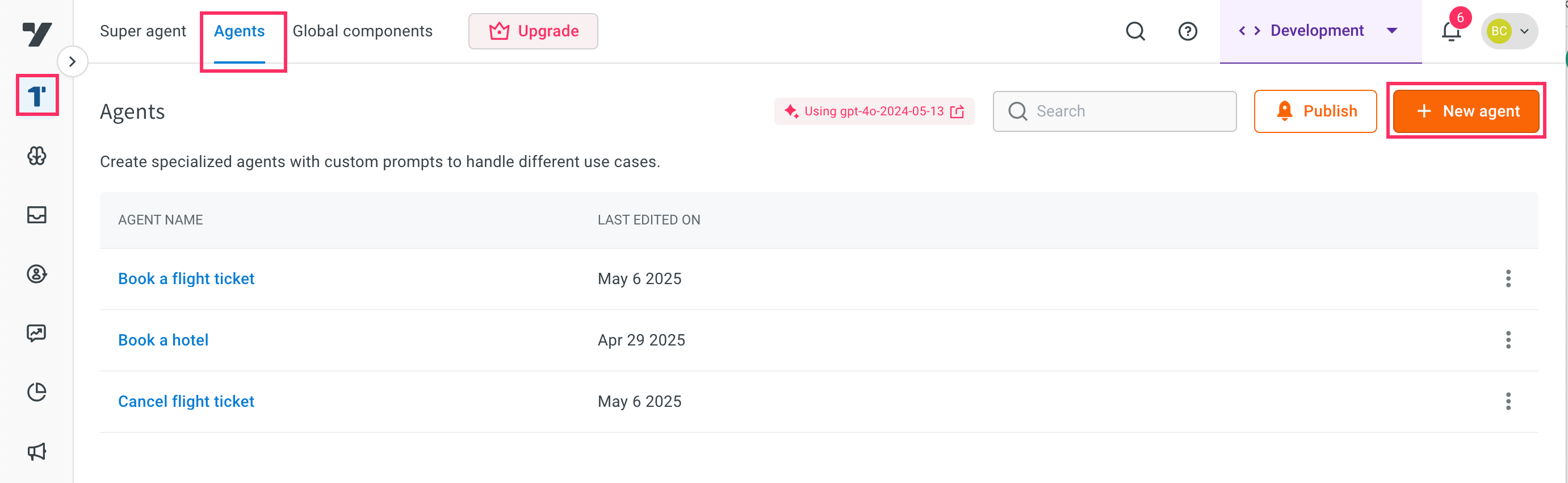

1. Navigate to Automation > Agents > + New agent.

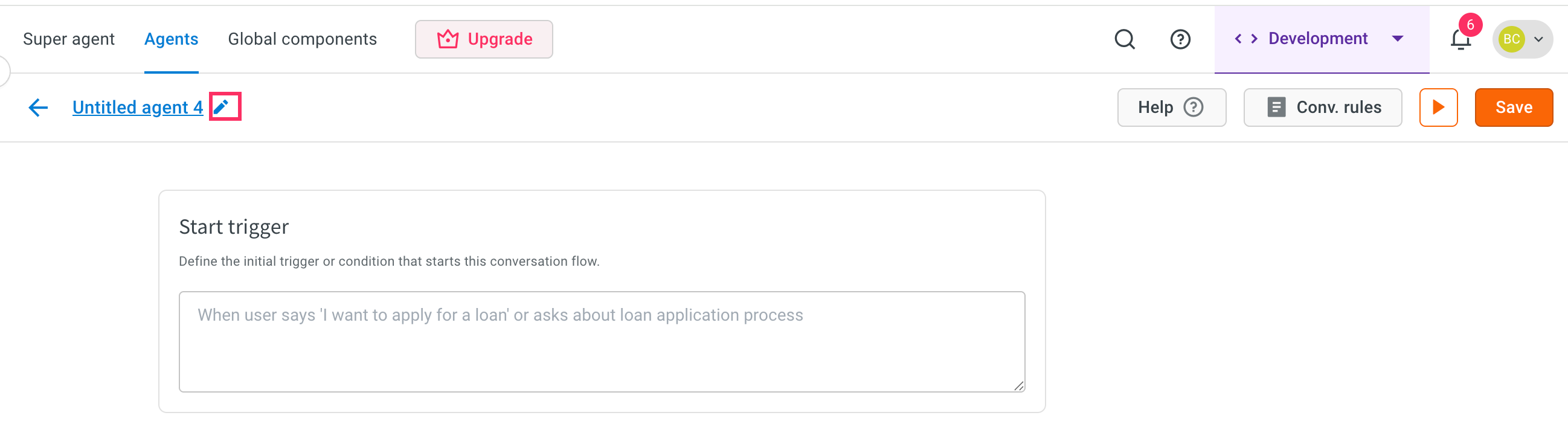

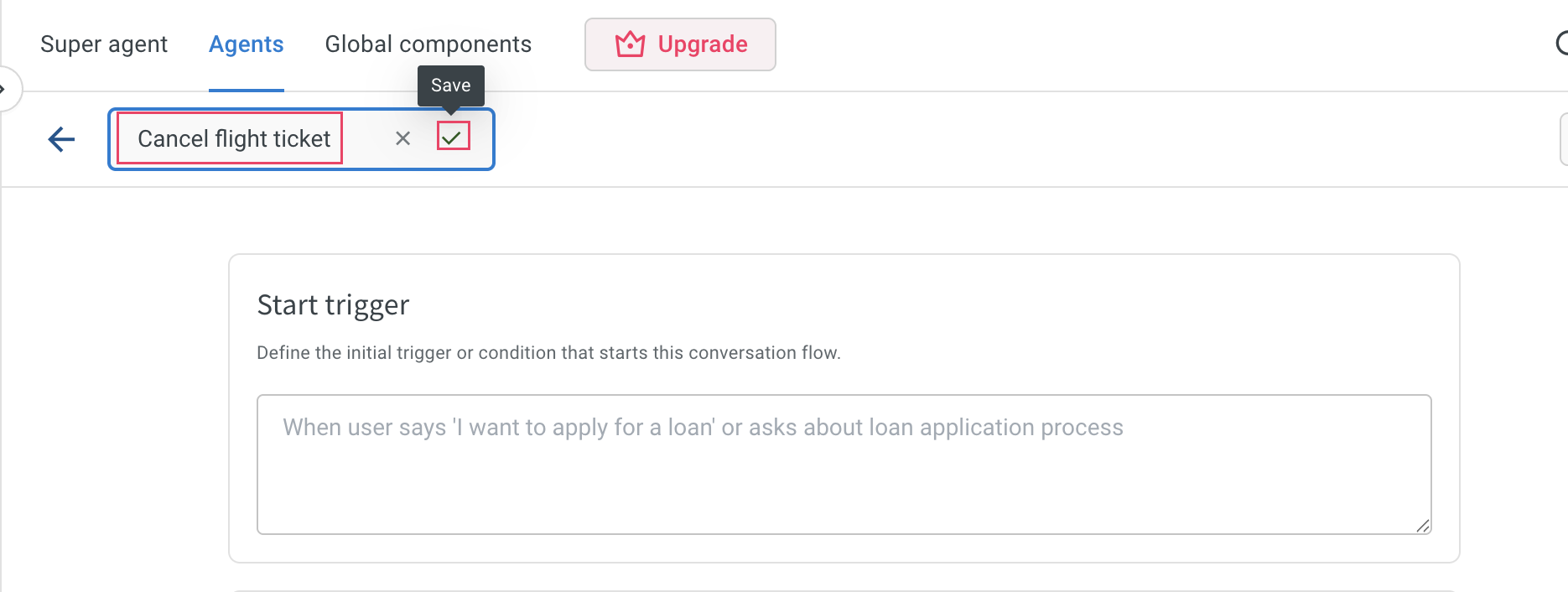

2. Click Edit icon to rename the agent.



3. Enter the name of the agnet and click Save icon.



4. In the Start trigger and Prompts section, configure how the conversation should begin and how the agent should respond.



info

Use Help button on the top. Help section provides a sample structure that shows how a conversation should be designed. It includes examples of how to define start triggers and write prompts. This helps users understand how to structure conversations.

Start trigger

A Start trigger is the initial message that initiates a conversation between the AI agent and the user. It acts as the entry point that tells the AI agent when to begin a specific conversation.

Start trigger ensures that the right conversation is initiated at the right time. When a user's message matches the trigger (example, a keyword or intent), the configured conversation will be triggered.

Types of inputs that can be used as Start Triggers:

• Phrases – Direct user expressions like "I want to book a demo".
• Intents – User goals, such as "Loan inquiry" or "Product help".
• Keywords – Specific terms such as "support", "pricing", "Loan inquiry", or "Product help", "apply now".

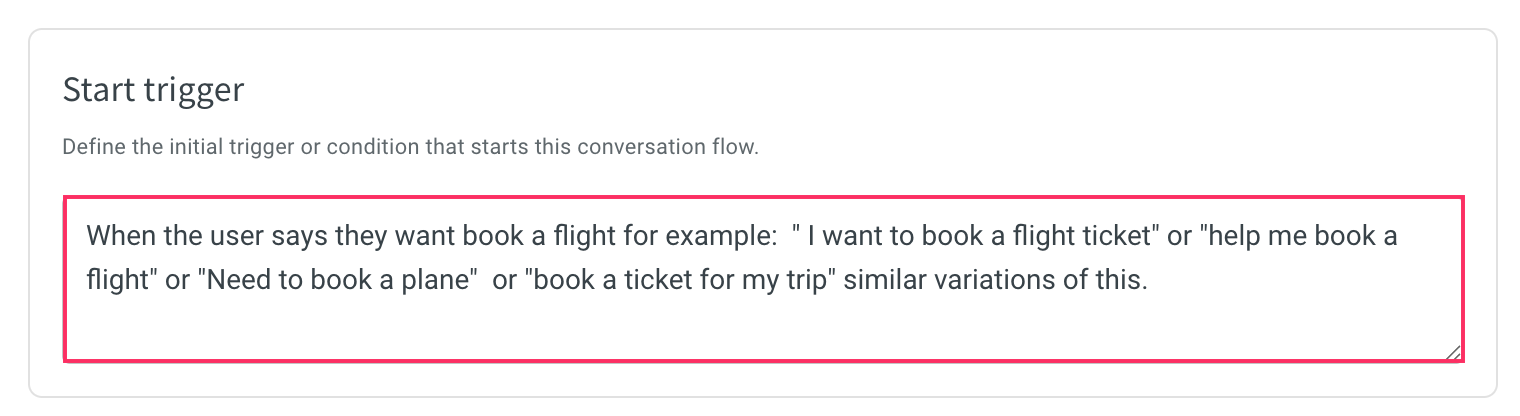

Examples of start triggers:

• When the user says they want to apply for a loan, such as: "I want to apply for a loan", "Help me get a loan", "Apply for personal loan", or similar variations.

• When the user wants to cancel a flight ticket, such as: "I want to cancel my flight ticket", "Help me cancel my flight", "Need to cancel my plane ticket", "Cancel my trip booking", or similar variations.



Prompts

A prompt is a set of instructions that tells the AI agent what to say or do during a conversation. It guides the conversation flow and helps the agent respond appropriately based on the user’s input

In conversation design, a prompt can be a question, confirmation, statement, call to action (Get input, call worflow, or call fallback), or Variables.

Prompts can be used to:

• Ask the user a question and wait for a reply
• Show information or messages
• Trigger backend tasks (like calling an API or updating a database)
• Validate user inputs and handle errors

A well-written prompt keeps the conversation clear and natural. Key elements include:

• Tone: Tone sets the interaction between AI agent and user. Examples:
  Friendly: "Hey there! What can I help you with today?"
  Professional: "Please provide your invoice number to proceed".
• Clarity: Use simple, direct language. Avoid technical jargon, complex phrases, or ambiguous terms. Clear vs Vague example:
  • When would you like to schedule your appointment? (Clear and actionable)
  • Provide a preferred timeslot. (Vague and robotic)
• Context: Give users enough context to understand why you are asking something. This makes the conversation feel logical and purposeful. Example: "To check your order status, I will need your order ID".

Best practices

While writing the prompts, consider the following best practices:

• Keep it short and conversational: Use simple, friendly language that feels natural to the user.
• Handle unexpected inputs: Always include fallback prompts to guide users back on track if they give incorrect or unclear responses.
• Validate user input: Use clear instructions and examples to show users the correct format. Example: Enter a 10-digit phone number with country code (example, +91 9876543210).
• Use quick replies or buttons: Help users respond easily and reduce mistakes by offering predefined response options.

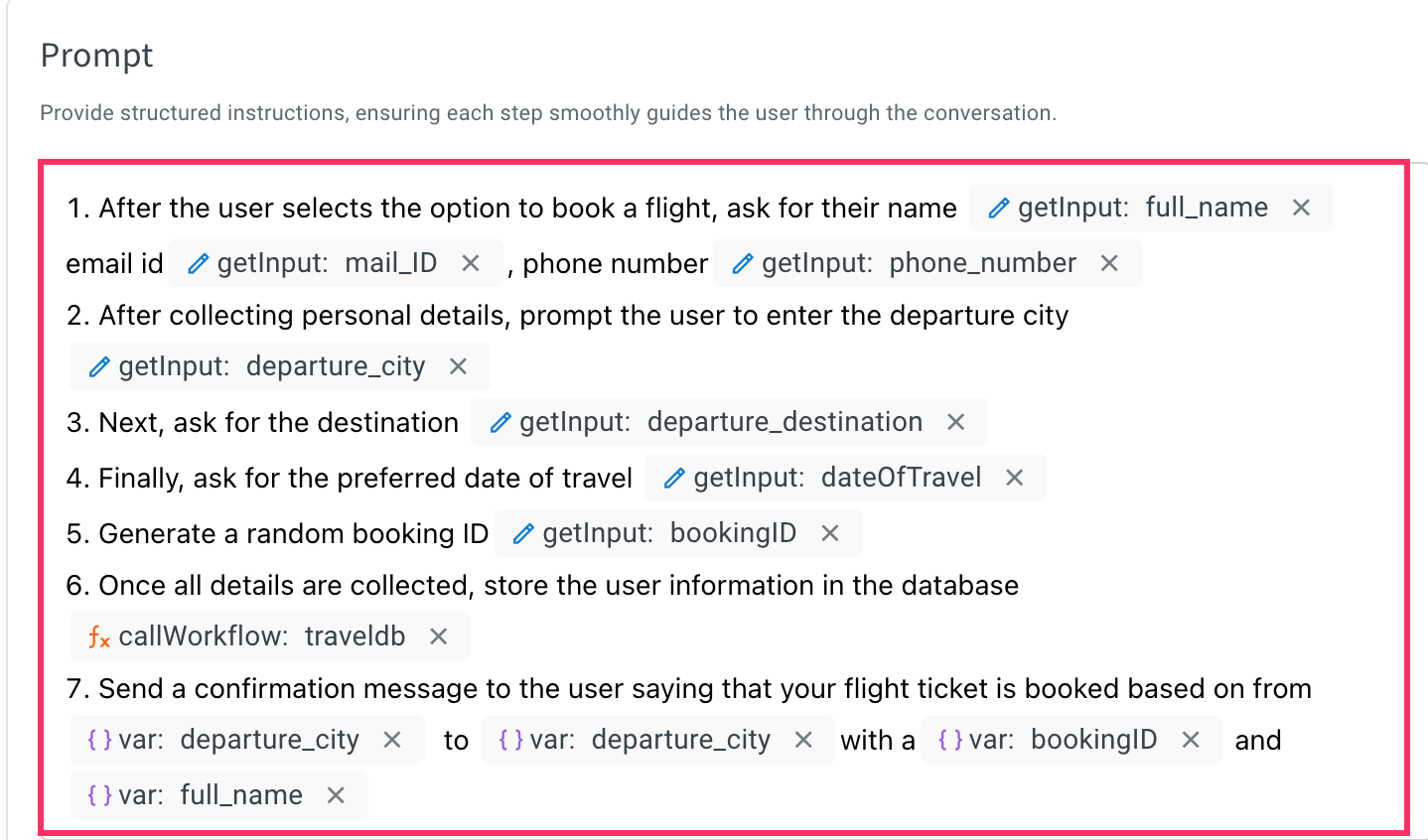

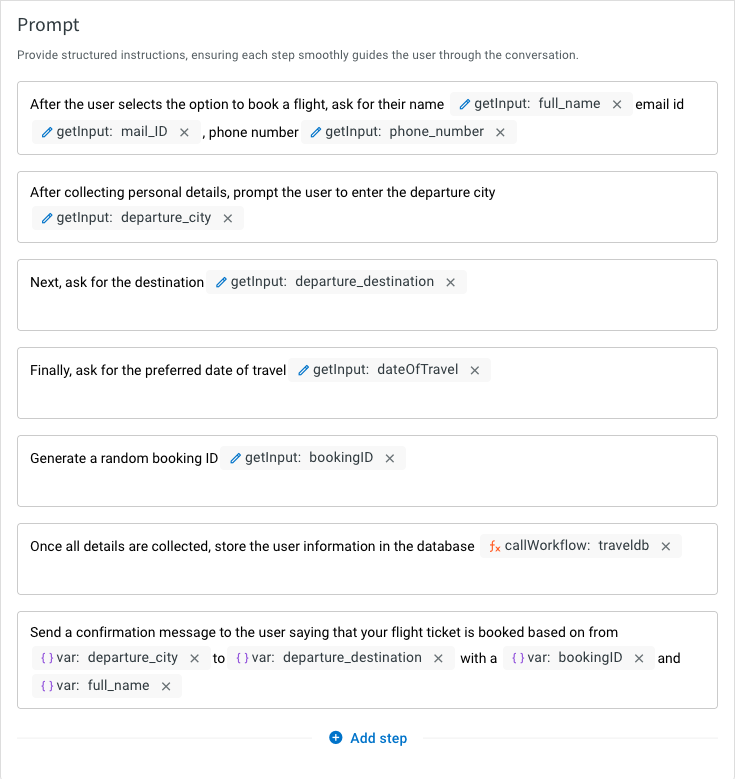

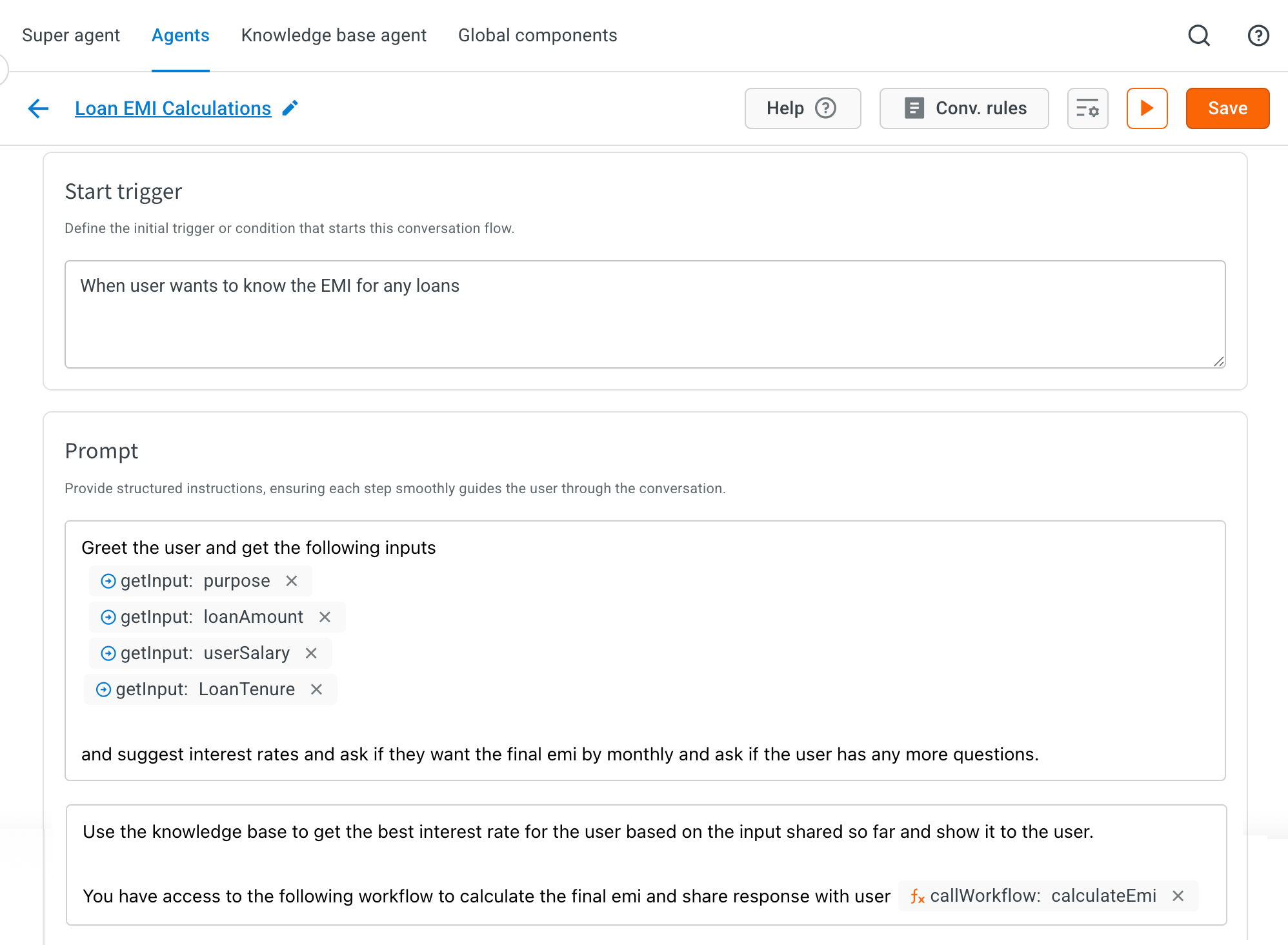

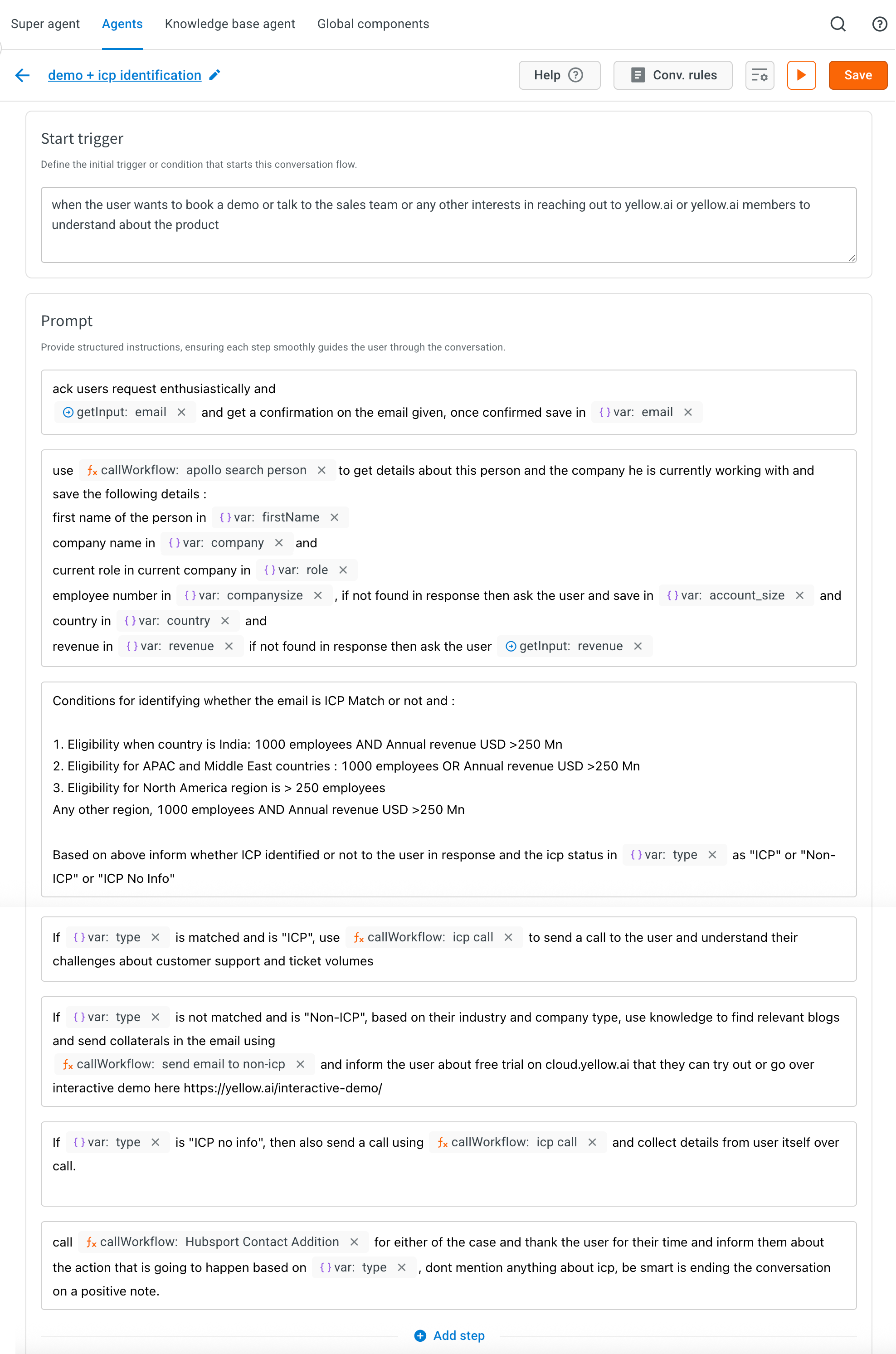

Below is a sample screenshot showing how prompts are written:

---

Add Actions to your AI agent prompts

Actions let the agent collect input, run workflows, or handle fallbacks—making conversations more dynamic and goal-driven.

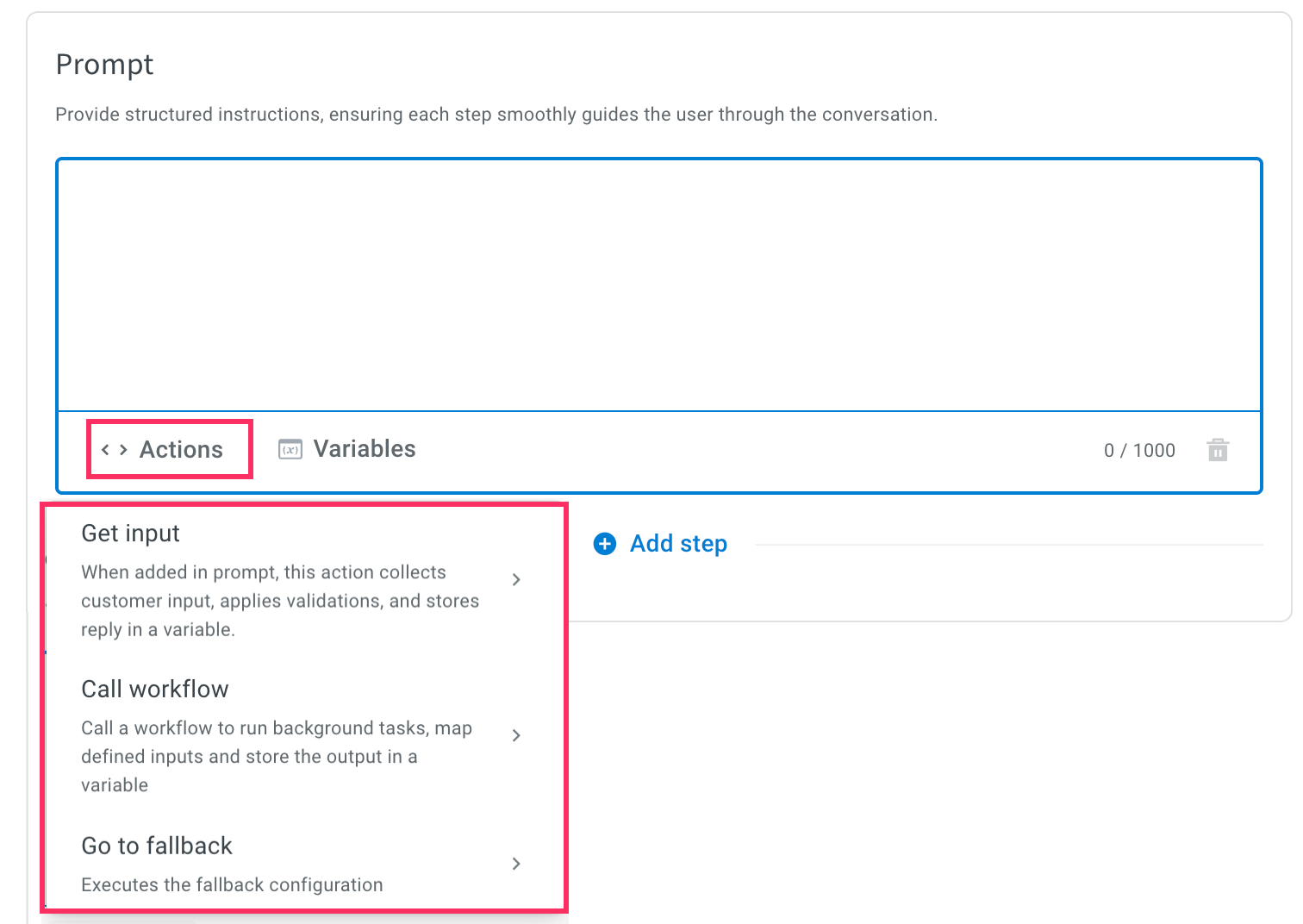

In the Prompt section, you can add the following actions:

• Get input: Collect specific information from the user, such as their name, phone number, and email.
• Call workflow: Trigger an external process or function, such as retrieving data from a database, calling an API, or executing backend operations, allowing the AI agent to handle complex tasks.

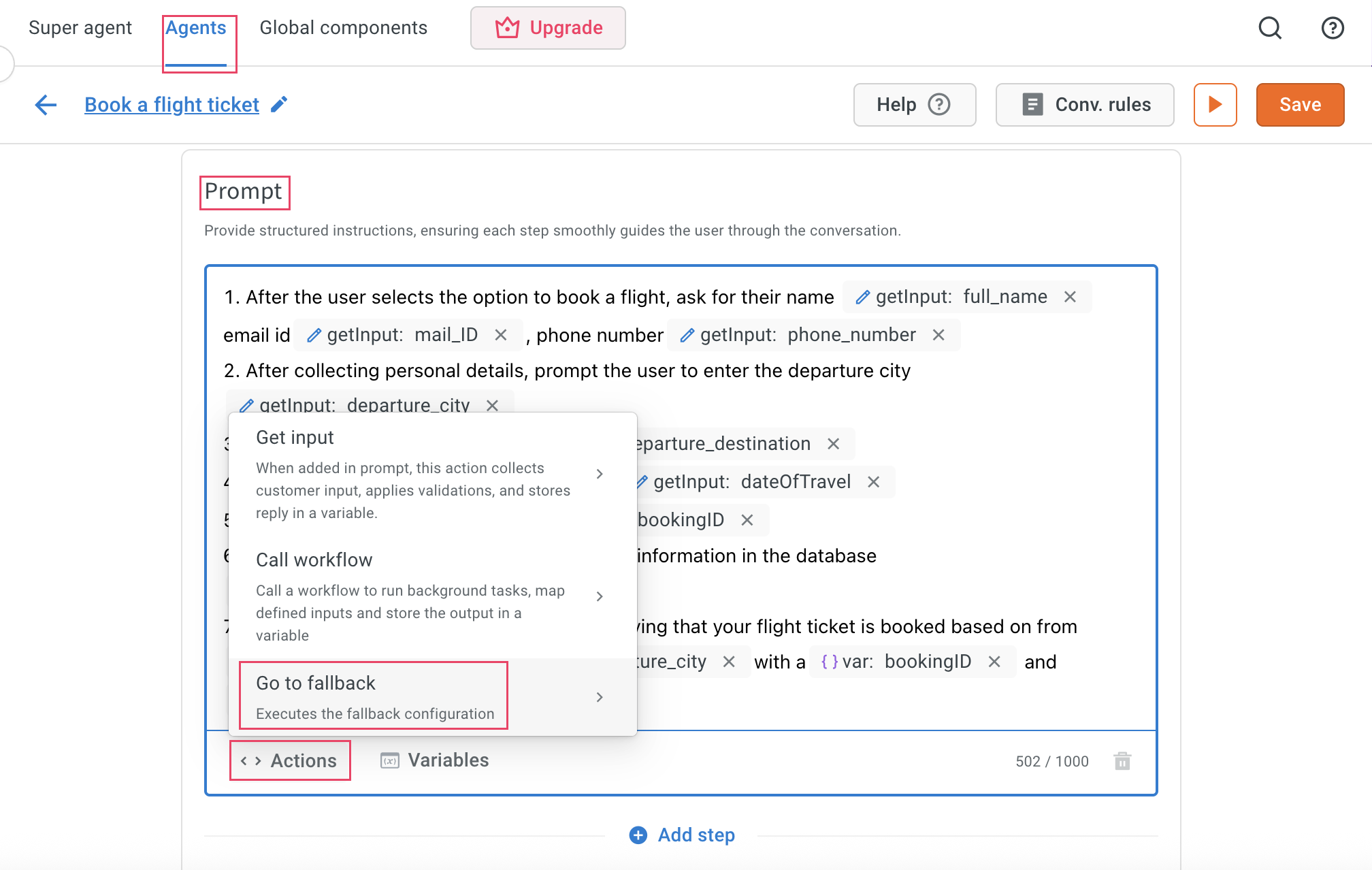

• Call a Fallback: Trigger a predefined fallback action when the AI agent is unable to understand or fulfill the user’s request.

tip

You can quickly access the above actions by using the@ shortcut key.

Get input

Use Get input to collect and store user responses in variables, this allows the AI agent to reuse the data in future interactions. It ensures that inputs are validated before storing the input.

For example, if a user provides their name, the bot can use it in future intercations.

Types of inputs

When creating an input, different input types can be selected based on the use case:

• Name – Captures the user’s name.
• Email – Collects the user’s email address.
• Phone – Gets the user’s phone number.
• Quick reply – Provides users with predefined response options.
• Carousel – Displays multiple options in a scrollable format.
• Date – Allows users to select or input a date.
• Custom – Enables a more flexible input type tailored to specific needs.

Create input

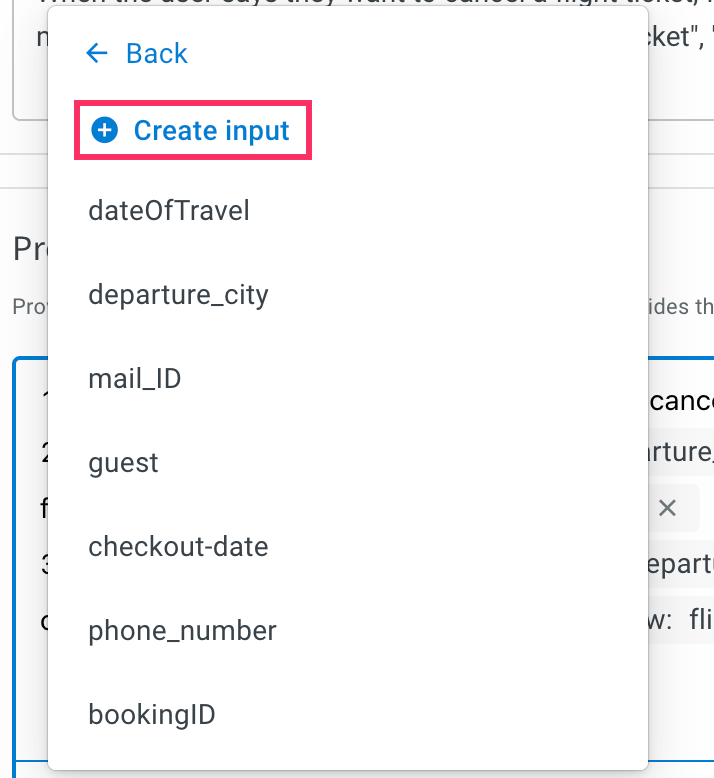

To create a input, follow these steps:

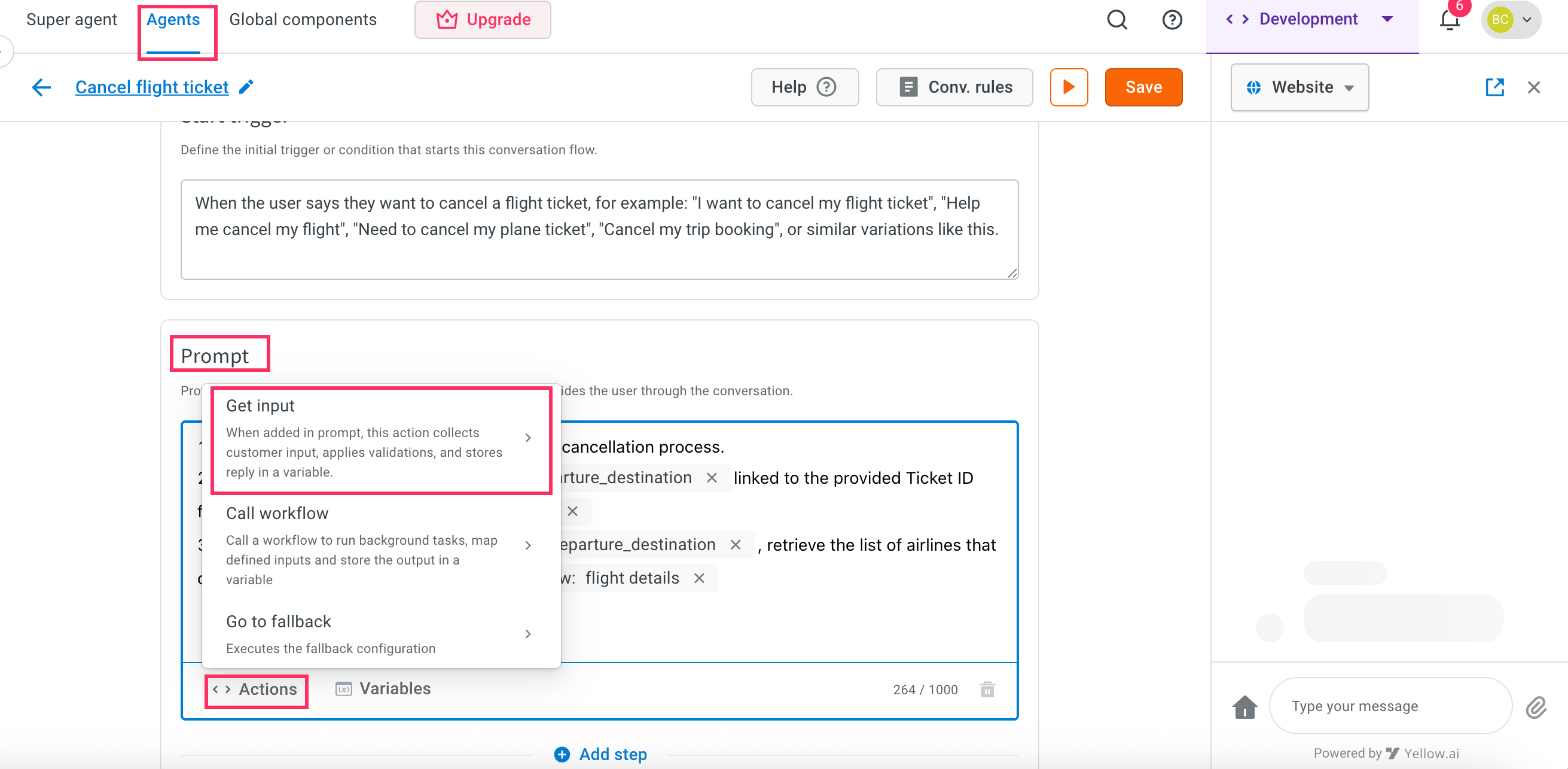

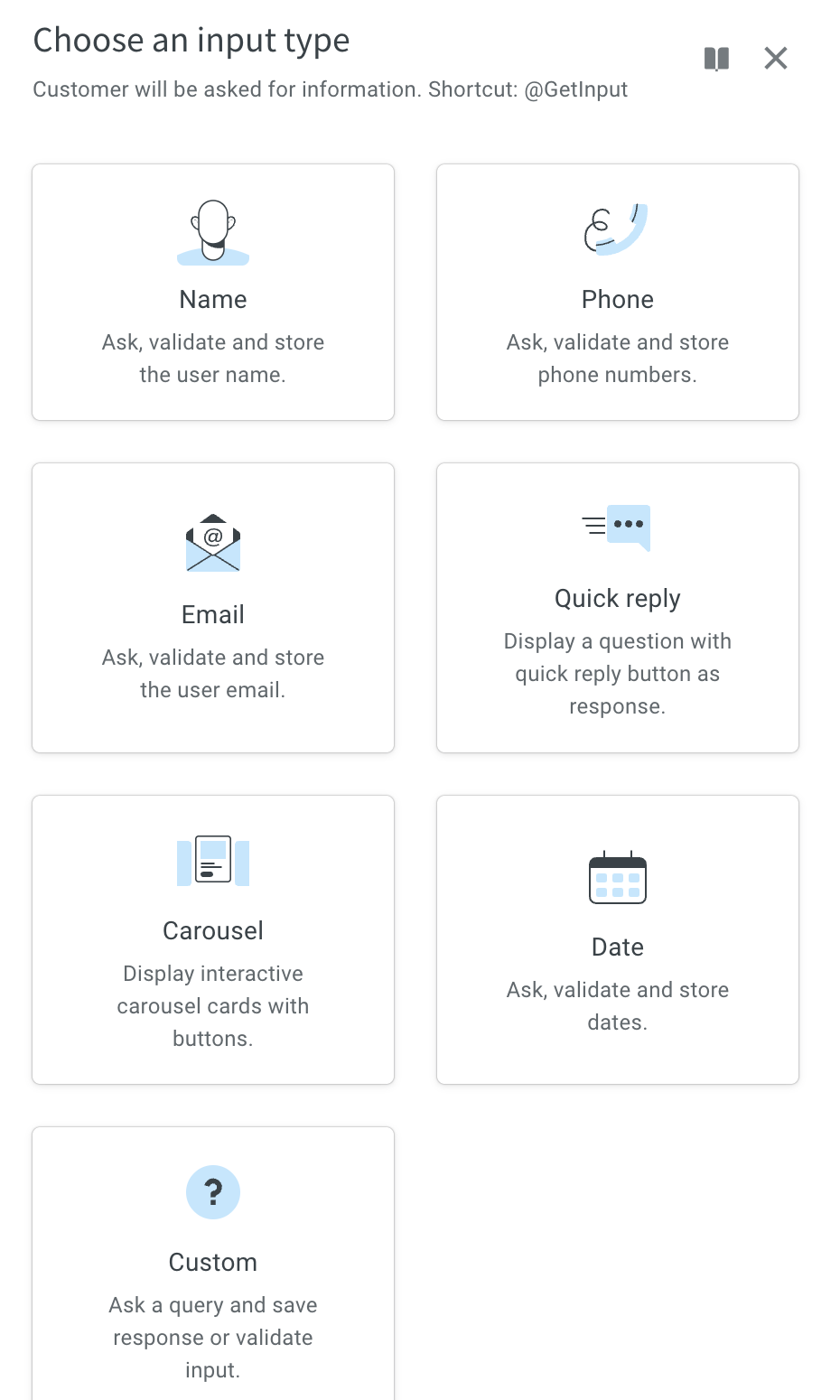

1. Go to Agent > Prompt > click on Actions > Get input.



2. Click + Create input.



3. Select your preferred input type based on the use case.

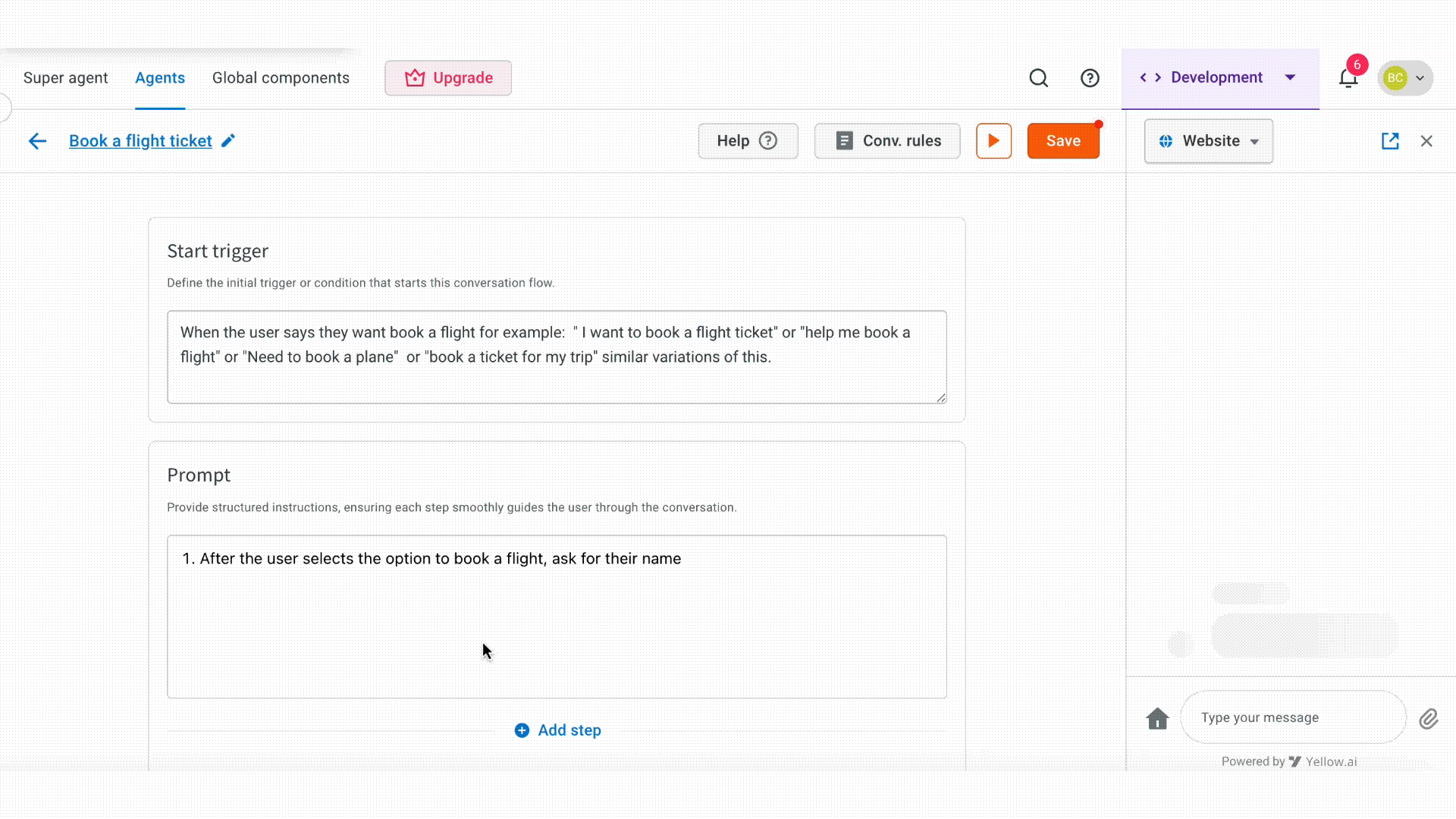

Get name input

Use Get name input to capture and store the user's name during a conversation. This input remains available throughout the session and can be reused by referencing the same input name in the other conversations.

The table below describes the fields available in the Get Name Input action:

Field name	Description
Input Name (Mandatory)	Defines the name of the input field where the user’s response will be stored. In this case, the field is labeled as Name.
Data type	Default data type is displayed. In this case, it is a String, meaning it only accepts text values.
Description	Provide additional details or context about the input field. This helps define how the AI agent will use the captured input.
Validation	Enter the validation rules to ensure the user provides valid input. Examples: – Allow upto 50 characters. – Reject names containing numbers.
Others	Enable Mark User Input as Optional checkbox: If checked, the user is not required to provide their name. If unchecked, the bot will prompt the user until a valid name is provided.

Email

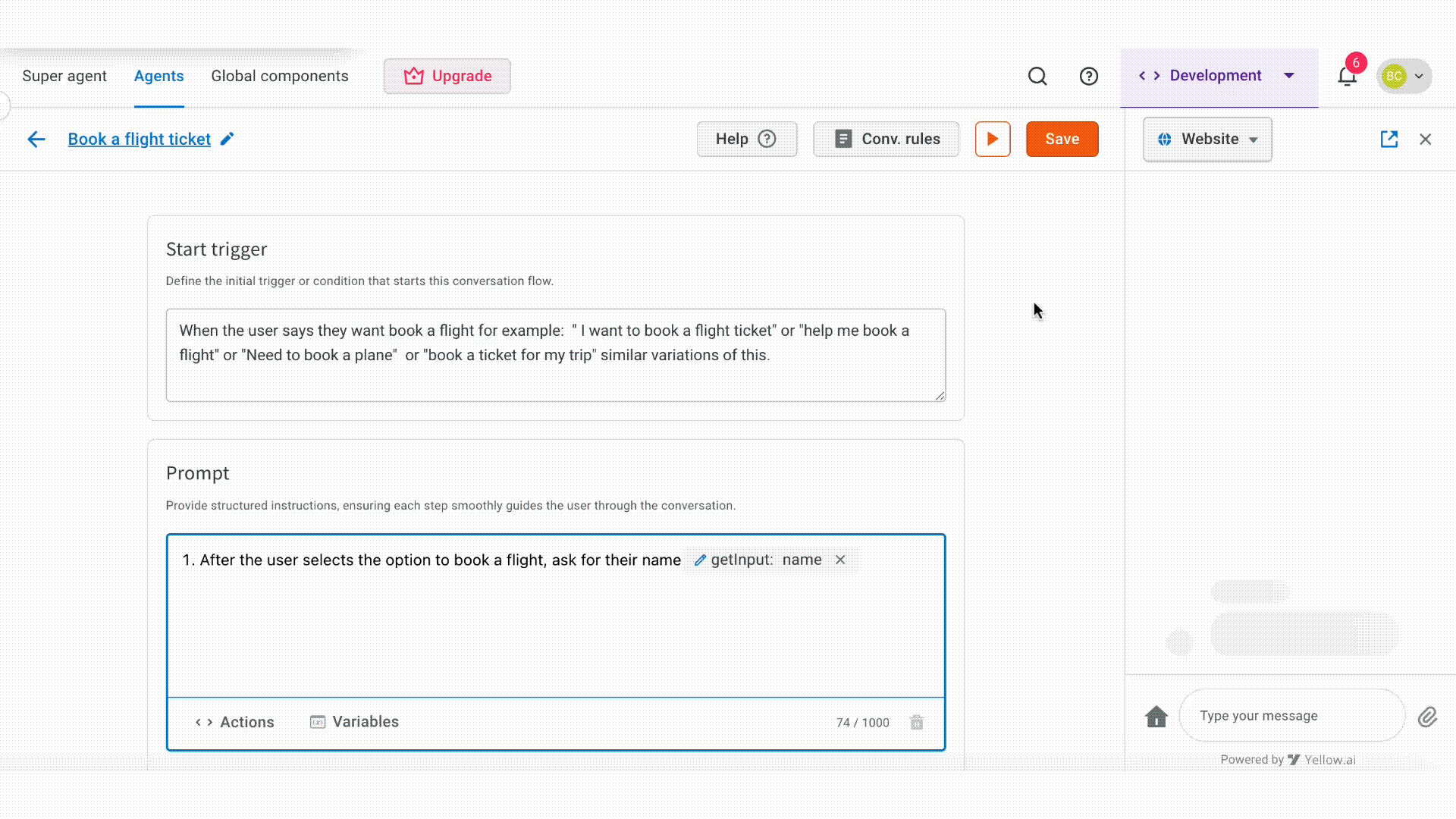

Use Get Email input to collect and store a user’s email address during a conversation.

The table below describes the fields available in the Get Email input action:

Field name	Description
Input name (Mandatory)	Specifies the name of the variable where the user’s input will be stored.
Data type	Default data type is displayed. For email input, it is set as String.
Description (Mandatory)	Provide context about the input field. Example: "Collect user email ID" to inform the AI agent about the purpose of this input.
Validation	Ensures the user input follows the correct format. The current validation rule requires the email to contain exactly one "@" symbol to be considered valid. Additional validation rules can be added.
Example of User Input	Provide an example of a valid email address, such as "johndoe@gmail.com", to guide users in entering the correct format.
Others	Enable Mark user input as optional checkbox: If checked, users are not required to provide an email address. If unchecked, the bot will prompt the user until they enter a valid email.

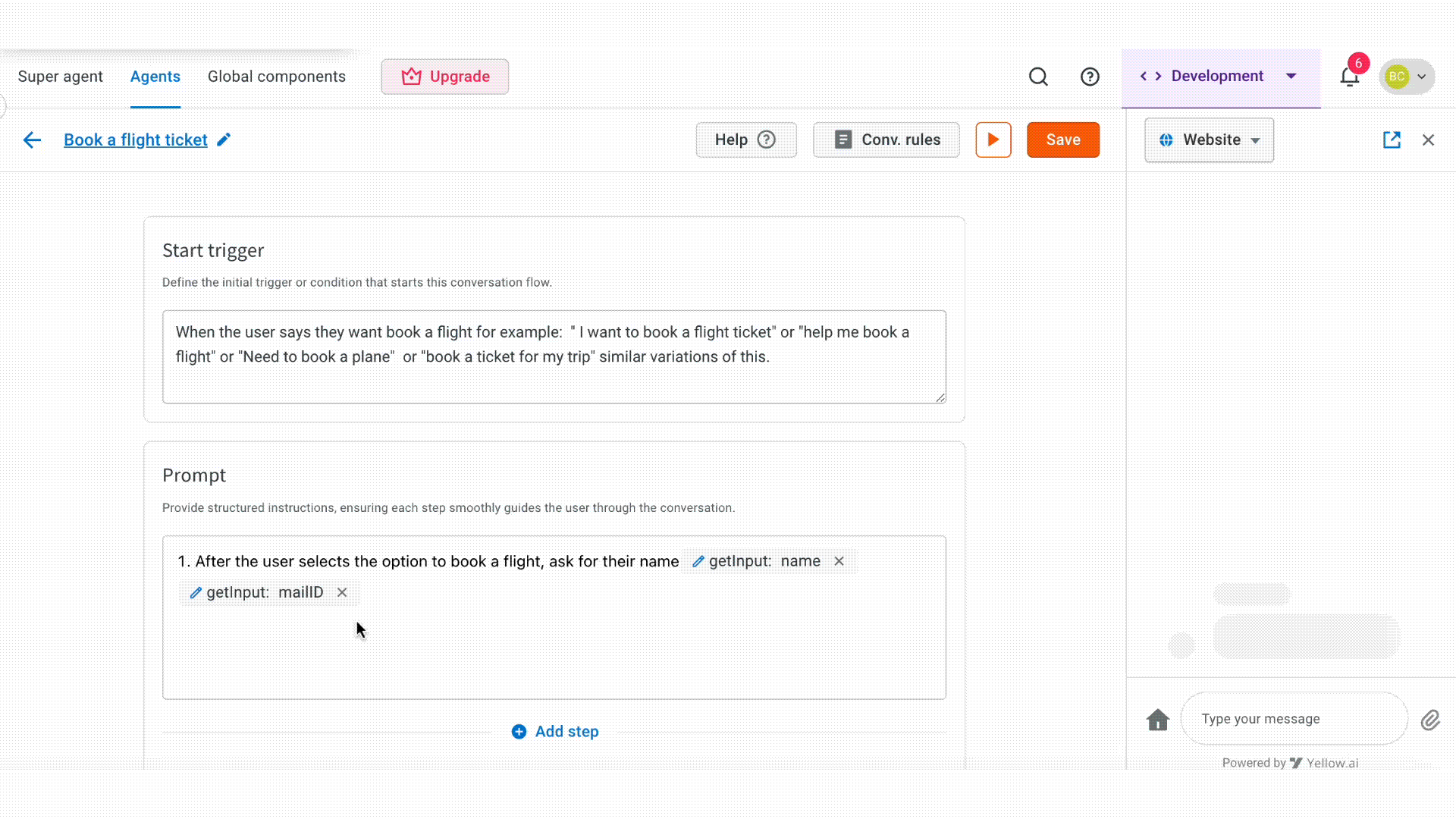

Phone

Use the Get Phone input action to collect and store a user’s phone number during a conversation. The collected number is saved in a variable and can be used for tasks such as sending notifications, verifying the user’s identity, or linking to order details.

The table below describes the fields available in the Get Phone Input action:

Field name	Description
Variable name (Mandatory)	Define the variable where the user’s phone number will be stored. Example: mobile_Number.
Data type	Specify the type of data expected from the user. For phone input, it is set as Number.
Description	Allows the user to provide additional details about the purpose of collecting the phone number. This field helps define how the AI agent will use the input.
Examples of expected input	Provides sample responses to help users understand the expected input format. Example: +91 9876543210.
Validation	Ensures the user input follows the correct format. In this case, users must select a country code to ensure proper phone number formatting. Additional validation rules can be added if needed.
Always save number with country code	If this option is enabled, the system will store the phone number with a country code, even if the user does not provide it.
Mark user input as optional	If checked, the user is not required to provide their phone number. If unchecked, the bot will prompt the user until a valid phone number is provided.

Add Quick reply buttons to the AI agent

Use quick replies to present users with tap-to-select response options. They simplify input, reduce typing effort, and keep conversations on track.

The table below describes the available configuration fields:

Field name	Description
Input name	Specifies the name of the input field where the selected quick reply will be stored.
Data type	Default data type is displayed. For quick reply input, it is set as String.
Description	Provide additional context or instructions about the quick reply input.
Dynamic options	Toggle this option to generate quick reply choices dynamically using variables.
Options	Click + Add to create static quick reply choices for users. More options can be added as required.
Others	Enable Allow users to type input manually (Checkbox) to protect sensitive information by replacing the characters with symbols to maintain privacy.

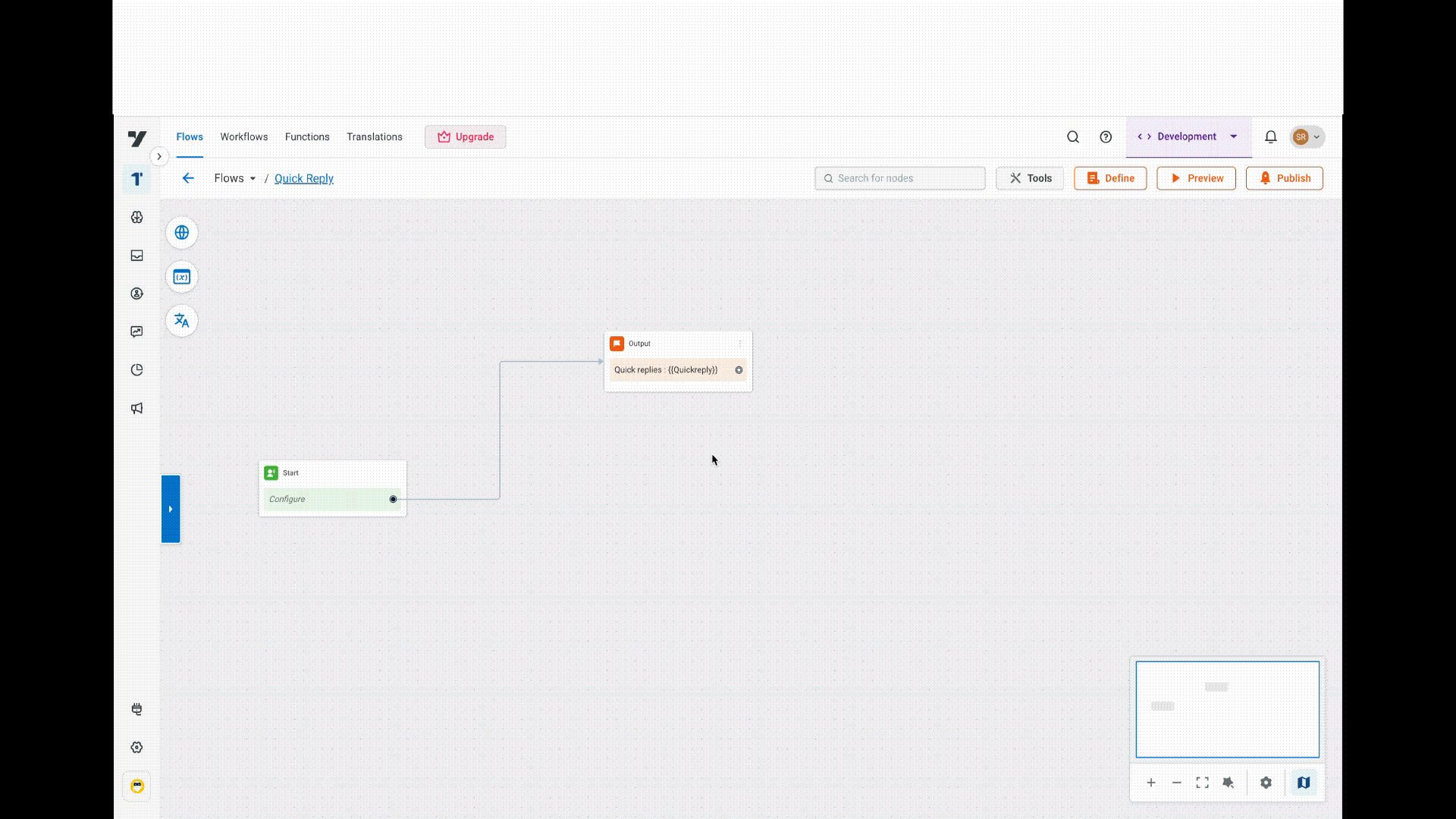

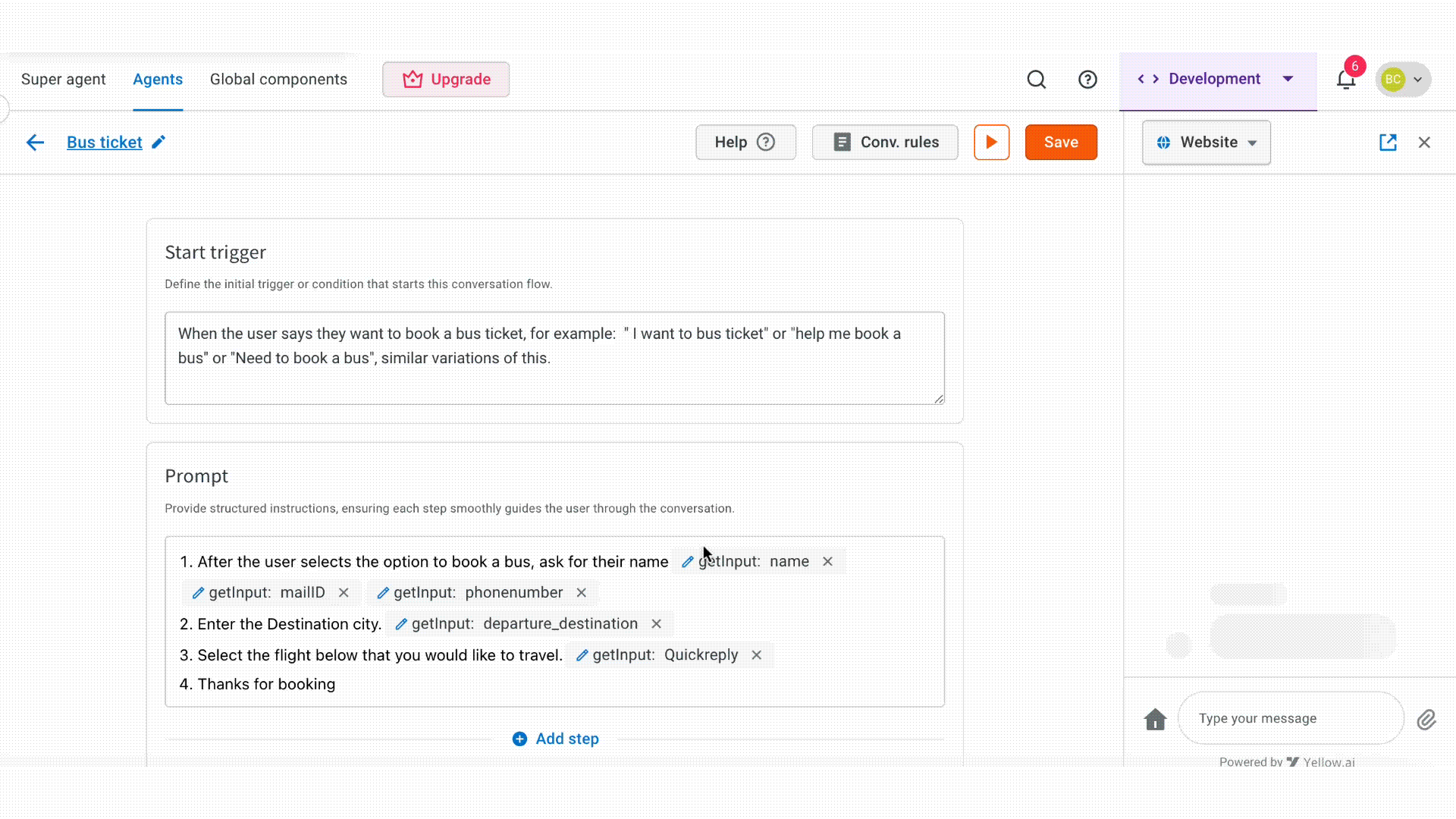

Refer to the following GIF to see how the Quick reply input will work:

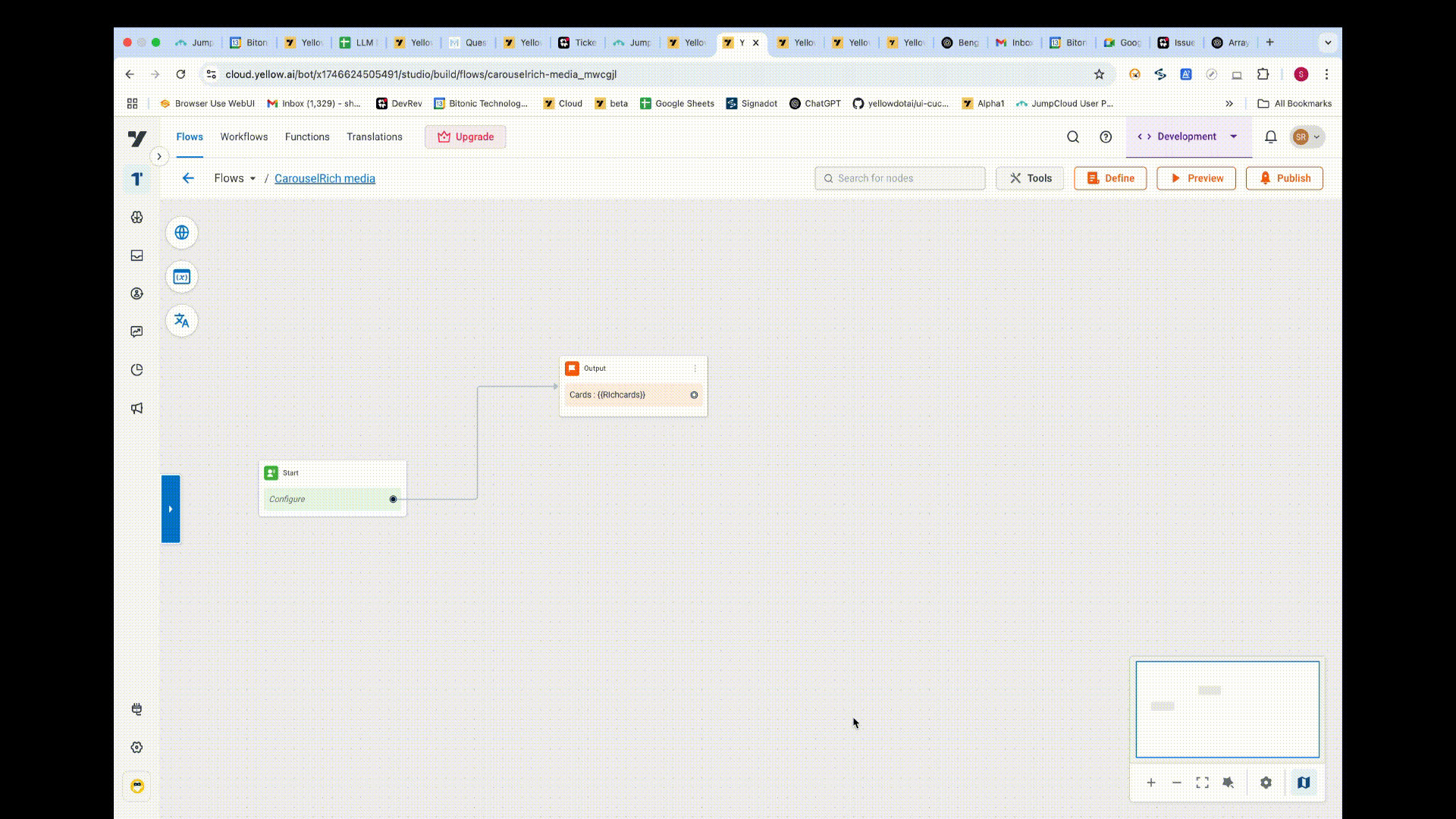

Carousel

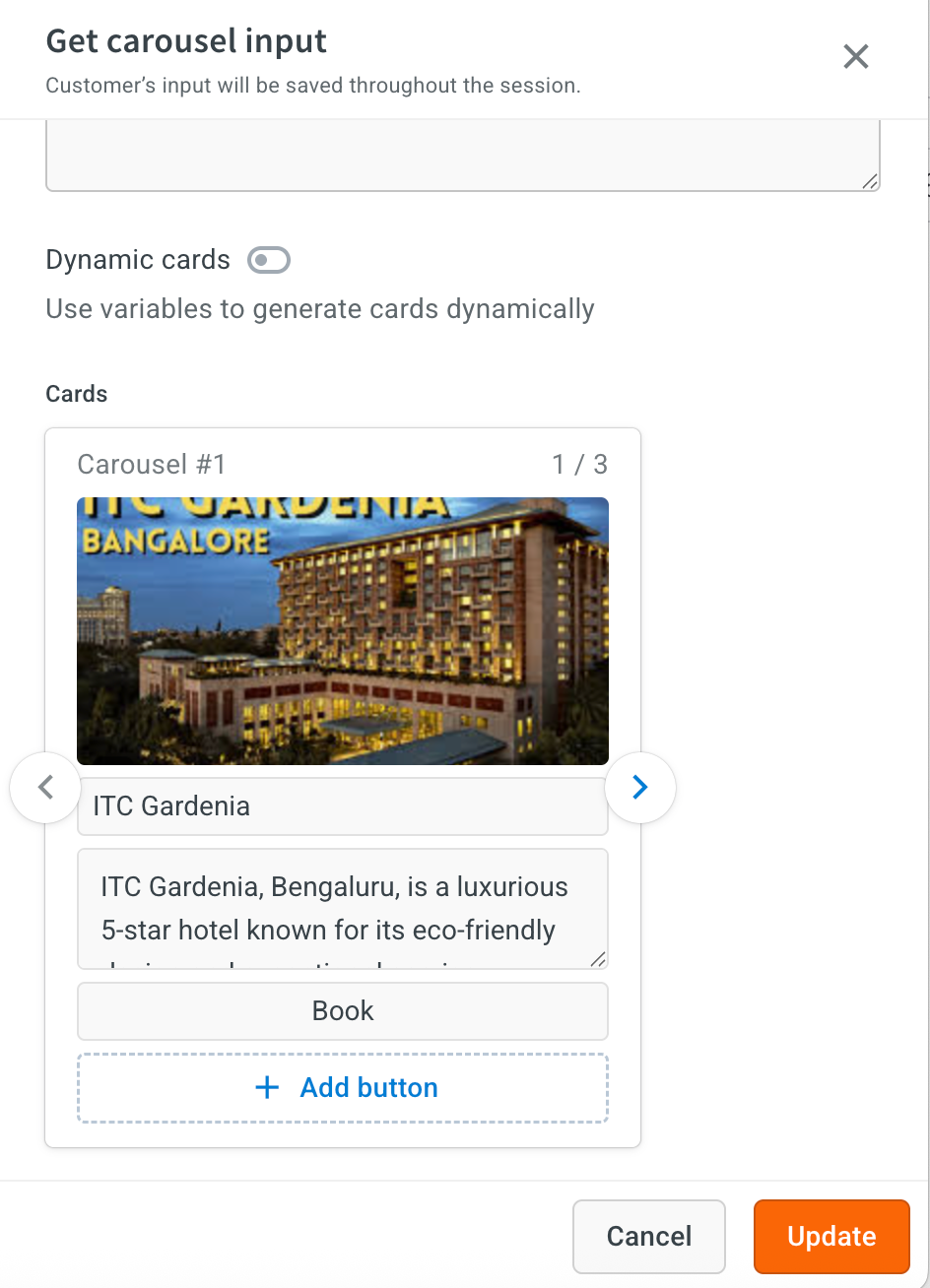

Use a carousel to present multiple options as horizontally scrollable cards. Each card can contain an image, title, description, and one or more buttons for user actions.

The table below describes each field in the carousel configuration:

Field name	Description
Input name	The variable name where the selected response from the carousel will be stored.
Data type	Default data type is displayed. For carousel input, it is set as String.
Description	Enter a brief explanation of the input's purpose to provide clarity on what information is being collected.
Dynamic response	Toggle this option to generate carousel options dynamically using variables instead of static data.
Cards	The individual items displayed in the carousel, which can include images, text, and buttons. Image: Allows you to upload an image (less than 10MB) to display the visual representation of the carousel item. Title: The main heading for the carousel item, giving a quick overview of the option. Description: Additional details about the carousel item to provide context to users. Buttons: Click + Add button to add interactive buttons for each carousel item, enabling actions such as selecting an option or opening a link.
Others	Enable Allow users to type input manually (Checkbox) to enable users to type a response instead of selecting a button in the card.

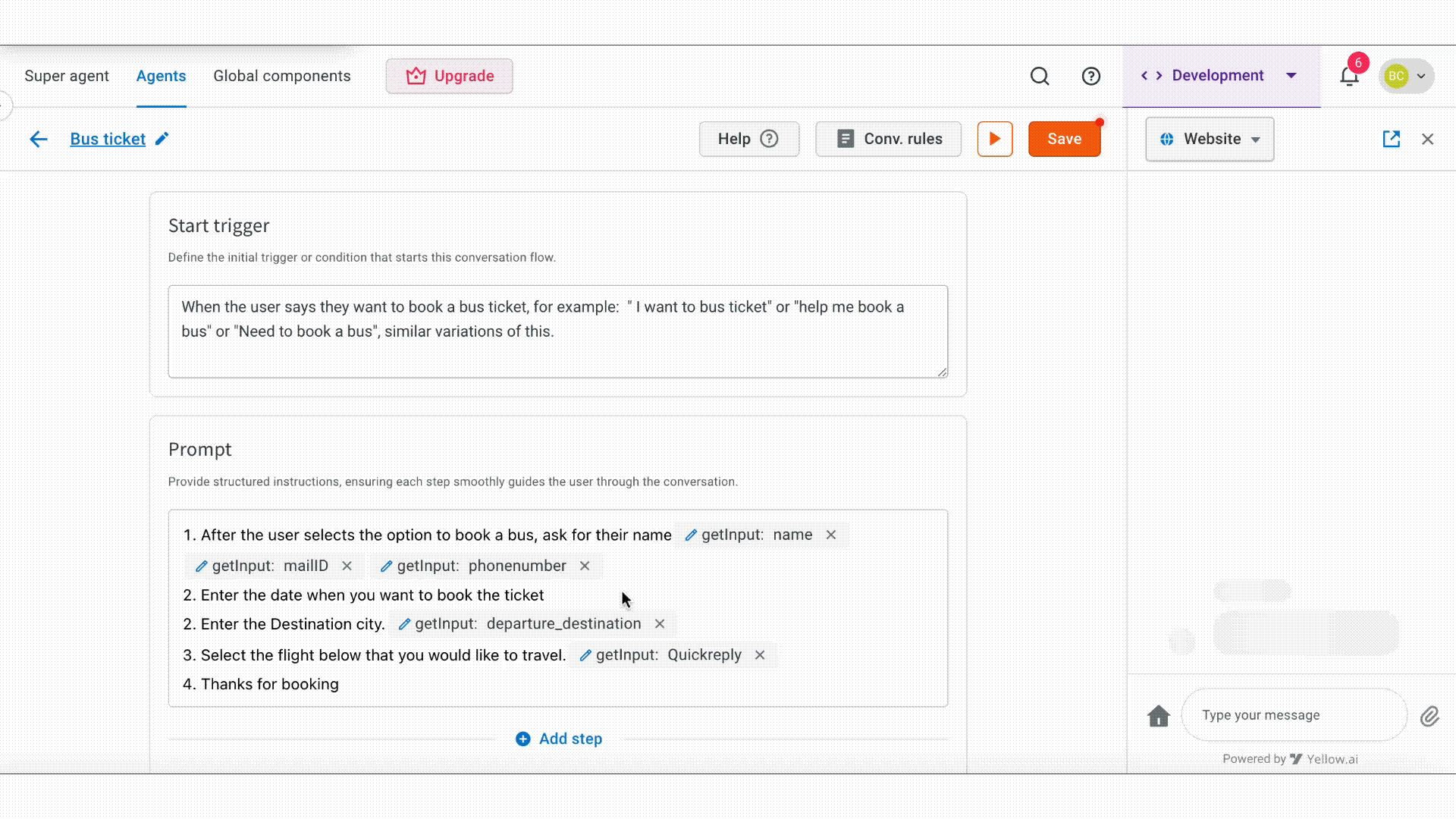

Date

Use the date input field to collect structured, date-specific responses from users. You can apply validation to ensure the input falls within a defined range or meets formatting requirements.

The table below describes each field in the date configuration:

Field name	Description
Input name	Enter the name where the user's selected date will be stored.
Data type	Default data type is displayed. For date input, it is set as "Date".
Description	A brief explanation of the purpose of the date input field.
Validation	Ensures that the entered date meets specified constraints. Range: Min. / Max: Allows setting a minimum and maximum date range to restrict user input within a valid timeframe. Custom instructions: Specifies the format in which the date should be entered or displayed (example, YYYY-MM-DD, MM/DD/YYYY).
Others	Enable Mark user input as optional to allow users to skip providing a date if they prefer not to share it.

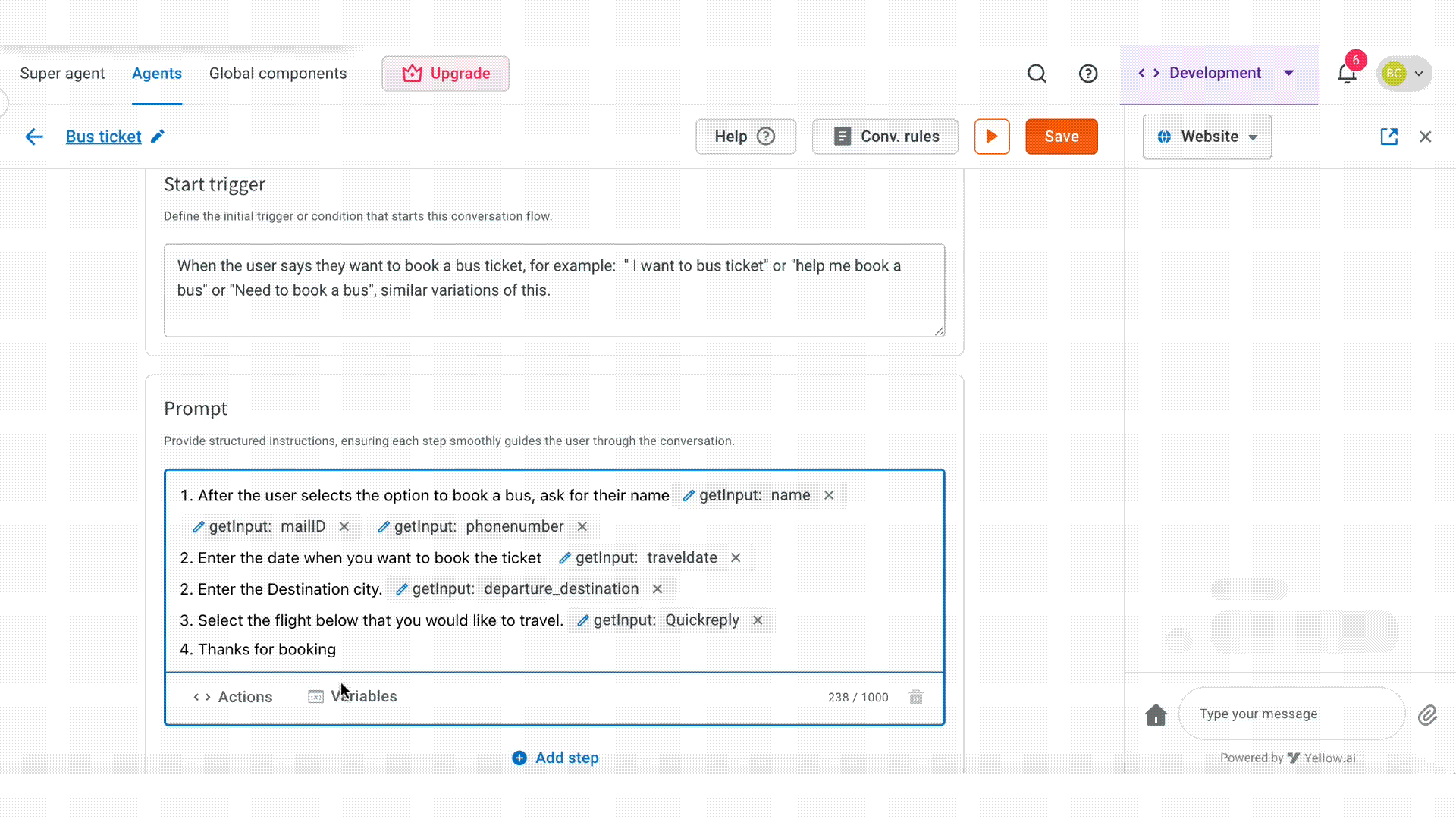

Custom

Use a custom field to collect user input in a specific format, apply validation rules, and store the response in a variable for later use. This field is ideal for capturing data like order IDs, ZIP codes, or any other input requiring tailored validation.

The table below describes each field in the custom input configuration:

Field name	Description
Input name	Enter the name of the custom variable where the user's input will be stored. This variable can be used in the conversation.
Data type	Select the preferred data type based on the custom input such as String or Number.
Description	Enter a brief explanation of what the field is used for.
Example of user input	Provides a sample input to guide the user toward the correct format. For example: “CUST1234” for a customer ID.
Validation	Ensures that the user input follows specific rules or formats. Add custom validation: You can define specific rules that the user’s input must follow. This ensures that the AI agent collects accurate and correctly formatted data based on your business requirements.
Others	Use the Mark user input as optional checkbox to allow users to skip this question if they prefer not to provide the information.

---

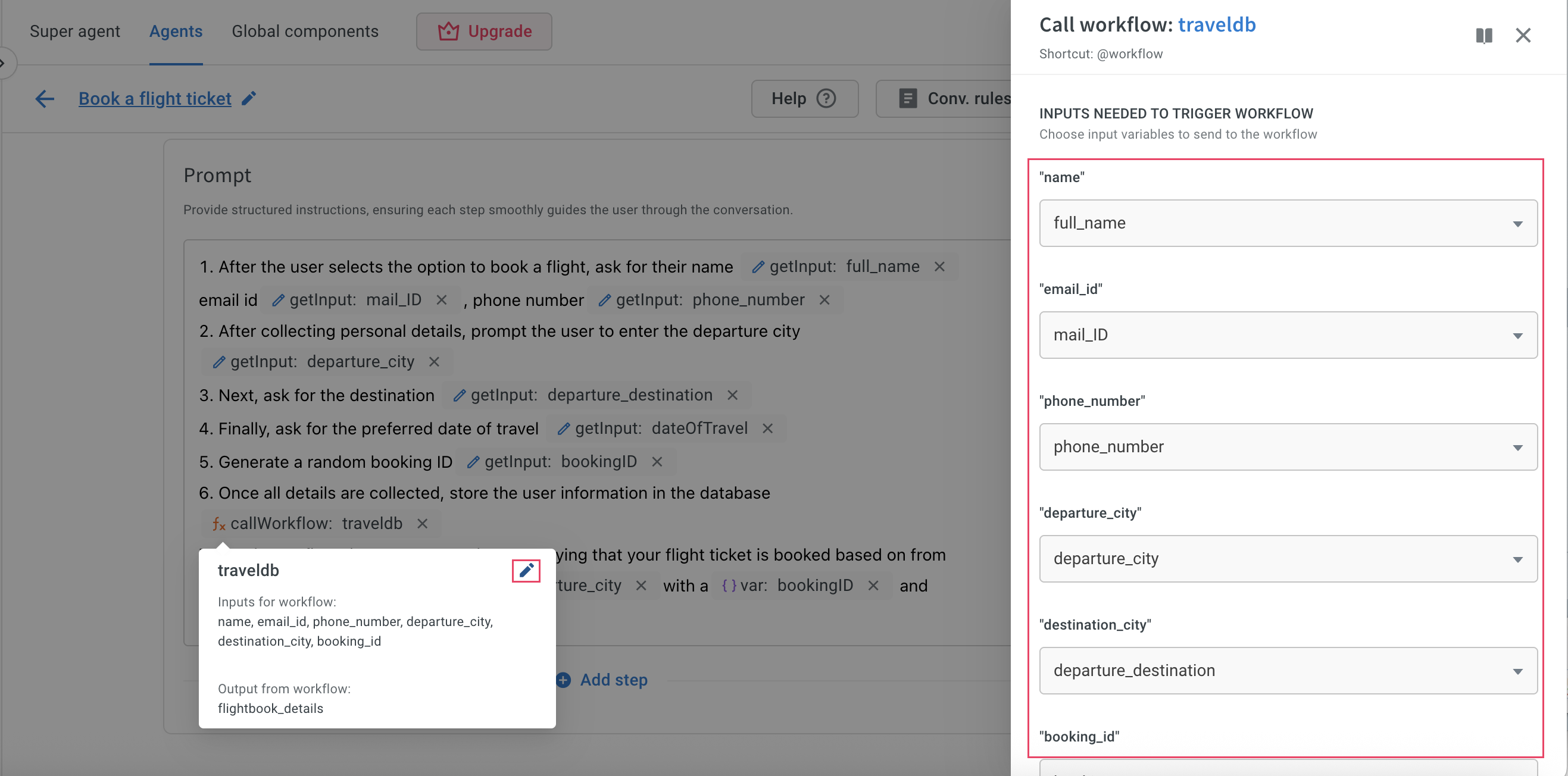

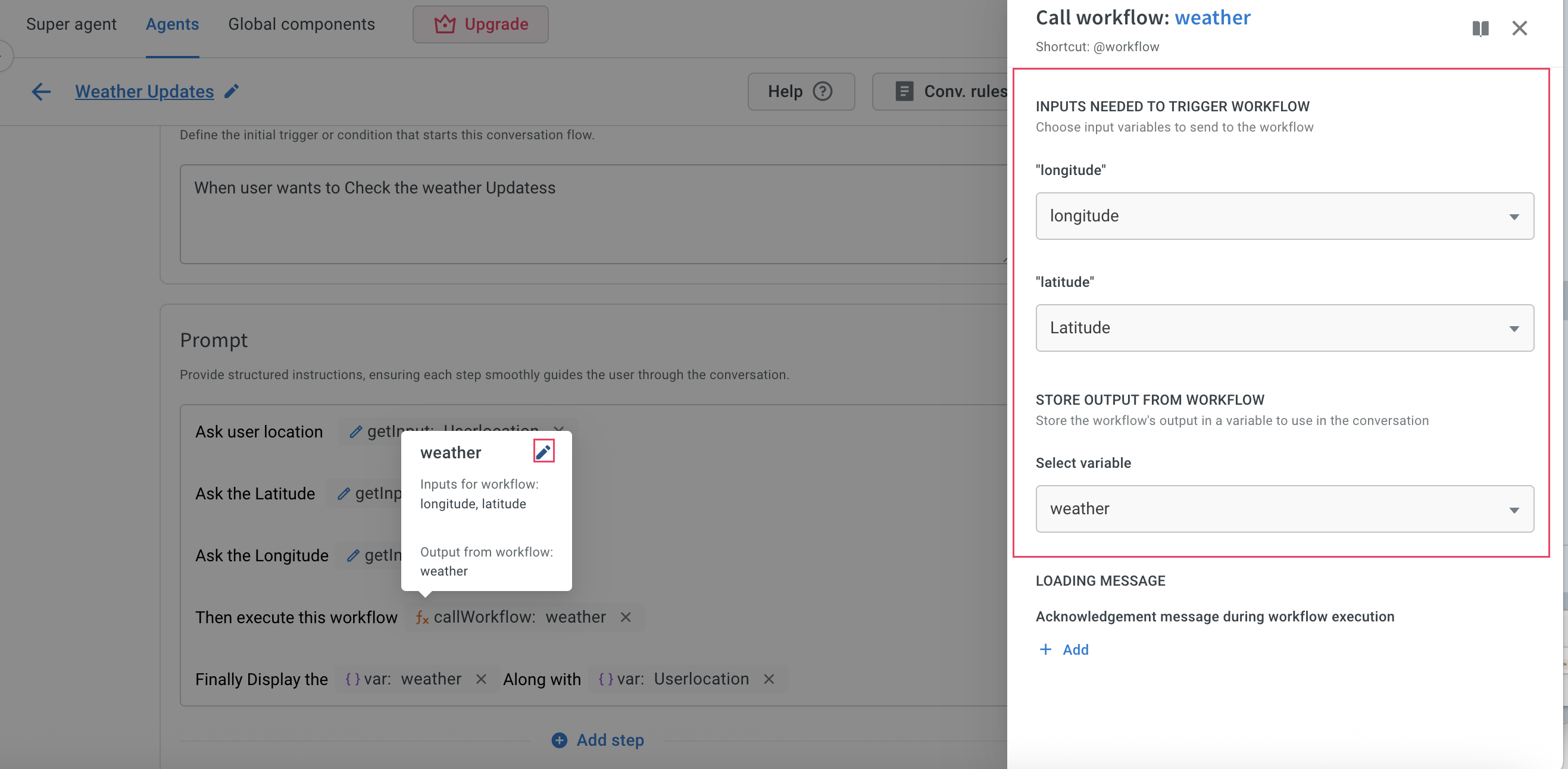

Call workflow

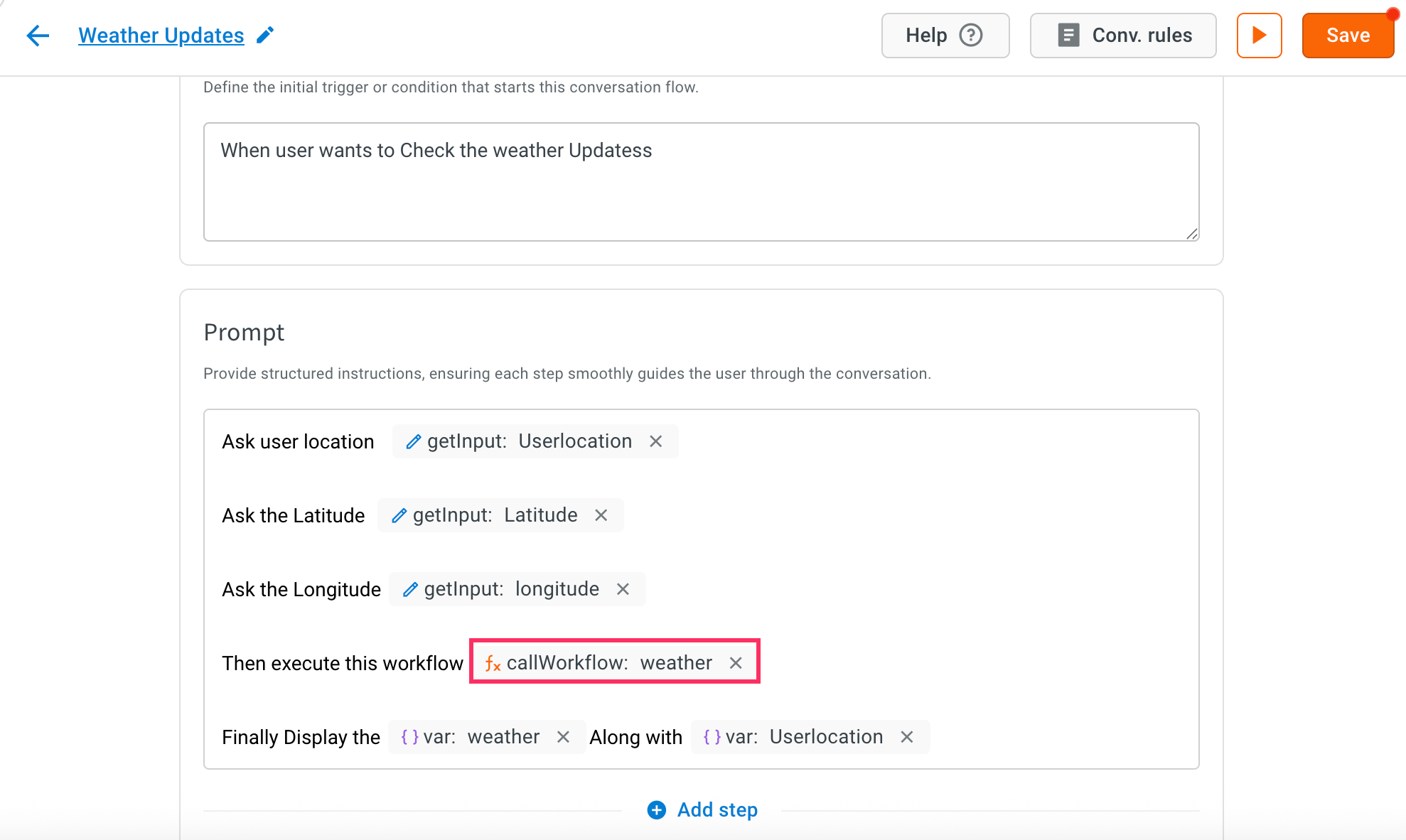

A workflow is a predefined action or process your AI agent can trigger during a conversation. Use this option to execute tasks like retrieving booking details, processing payments, verifying user information, or updating records. You can pass user inputs as variables to the workflow and capture the output for use in later steps.

The table below describes the fields available in the Workflow action (How does the workflow work?):

Step	Description
Trigger the workflow	When the conversation reaches the Call workflow action, the AI agent activates the linked workflow.
Pass input variables	The AI agent sends relevant input data (e.g., booking ID, user name) collected earlier in the conversation to the workflow.
Workflow processing	The workflow executes its logic to perform tasks, automate backend operations, and handle complex scenarios, such as: Fetching data from APIs or databases (e.g., retrieving weather updates using location data) Raising support tickets (e.g., for flight cancellations) Connecting to a human agent when needed Executing custom functions (e.g., calculating baggage charges)
Store output	The workflow’s response (e.g., booking status, payment confirmation) is stored in a variable for use in subsequent conversation steps.

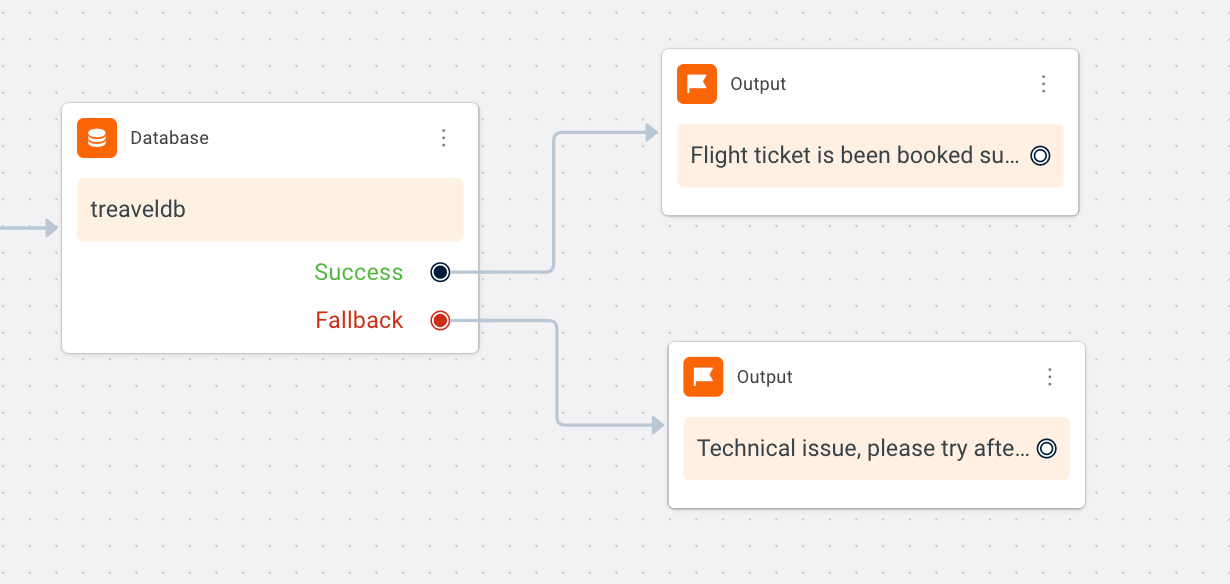

Output node in Workflows

The Output node in a Workflow defines what data is returned once the workflow has finished executing. This data can be text, variables, or rich media, and it is passed back to the conversation that triggered the workflow. The returned output can then be used in the following steps of the conversation to deliver dynamic responses.

The Output node ensures that results from operations like API calls, database queries, or logic functions are returned in a structured usable form to the AI agent to continue the conversation based on real-time data.

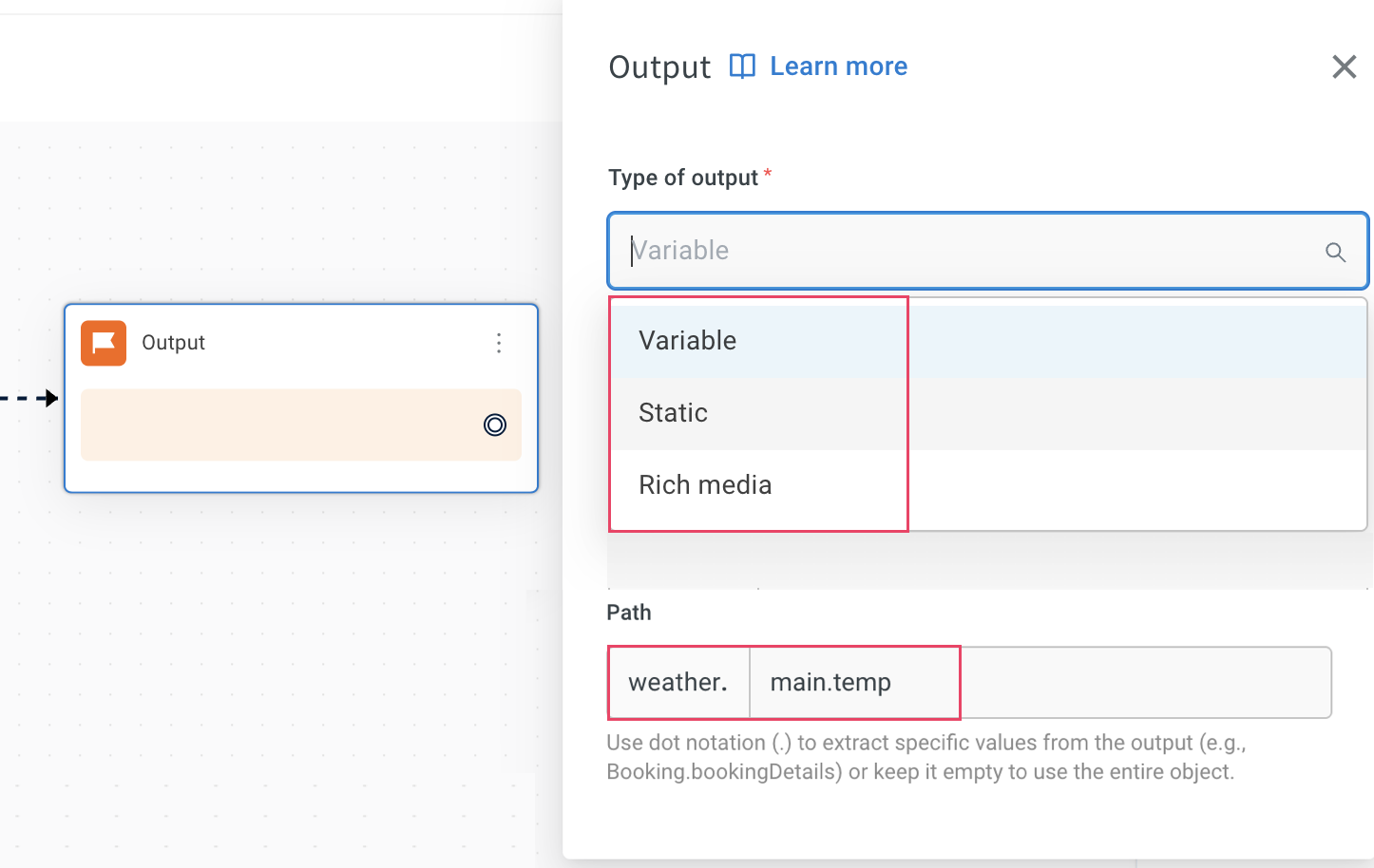

Types of Output

You can configure the Output node to return one of the following types:

1. Static: Returns a predefined text message when the Workflow completes.
   Use case: Use this when the output is static and does not depend on dynamic input.
   Example: "Thank you! Your request has been submitted."

2. Variable: Returns dynamic content stored in a variable, such as values fetched from APIs, databases, or functions.
   Use case: When the workflow depends on user inputs or dynamic data.

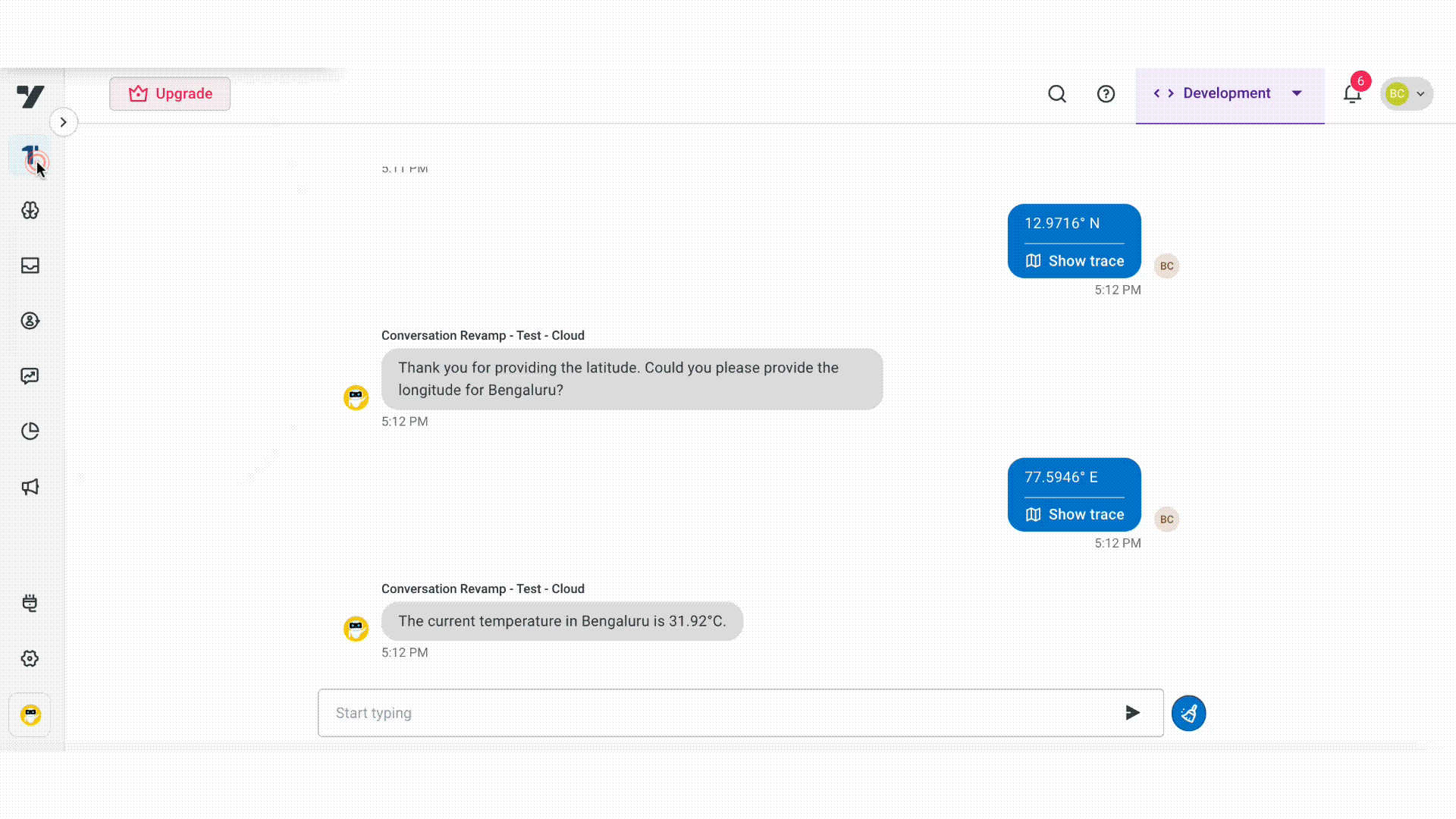

   Store the weather temperature fetched from an API and use it later in the conversation.

3. Rich media: Returns visually enhanced responses for user engagement. Rich media is supported across web and messaging platforms like WhatsApp. Types of Rich media:

   • Quick reply – Displays button-based options for easy user input.



   • WhatsApp list – Displays a structured list of selectable items.

   • Cards – Display images, titles, and buttons in a visually engaging format.



Output path

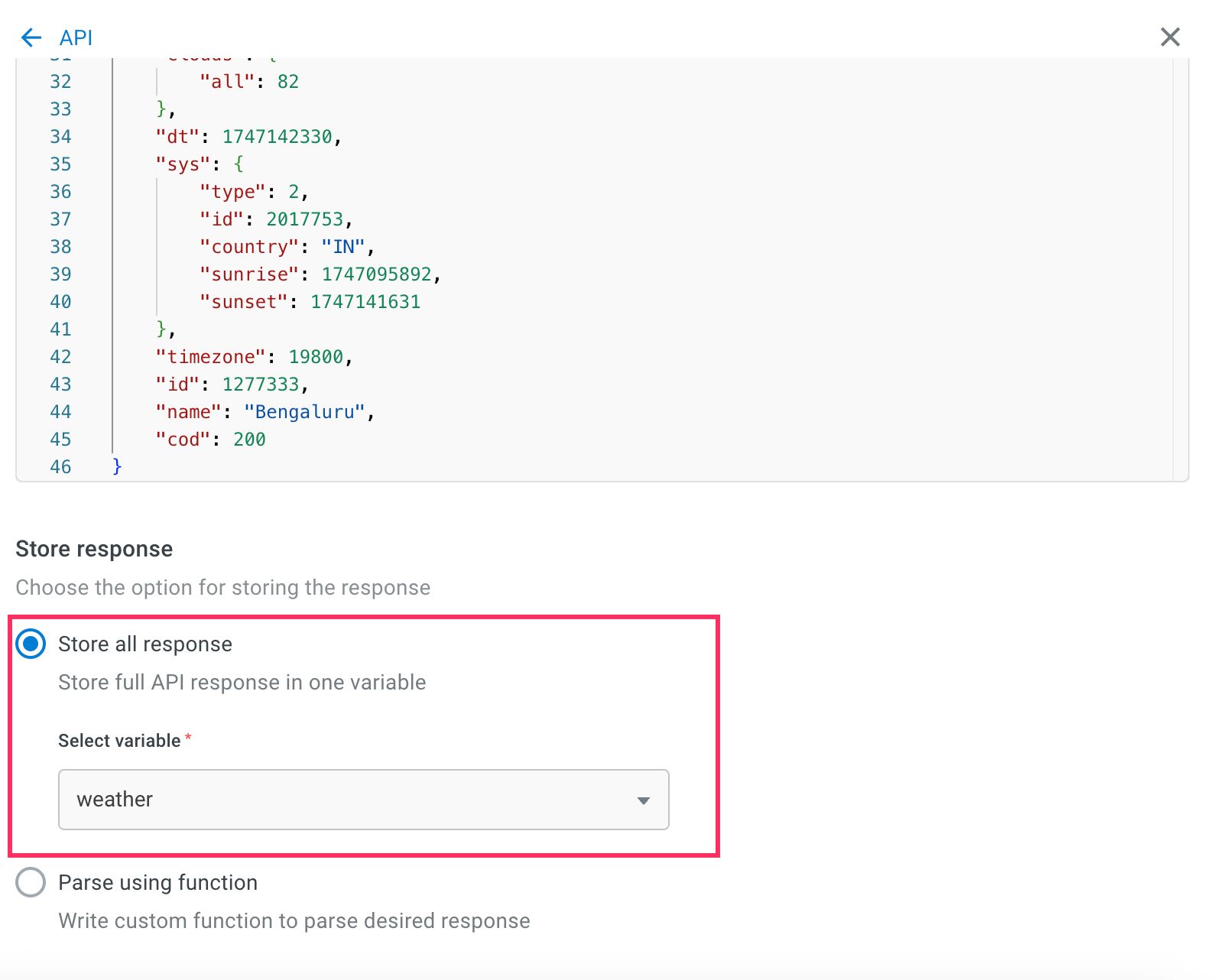

Use the Output path when you set the Output type to Variable. It lets the workflow return specific data from a larger API response.

When the workflow receives a complex or nested response (like JSON), you can extract only the needed data by using dot notation in the Output path field.

By using the Output path, you ensure the workflow sends only the relevant part of the response back to the conversation.

How to use it:

Suppose your API response looks like this:

{
  "main": {
    "temp": 27.5,
    "humidity": 80
  },
  "weather": [
    {
      "description": "partly cloudy"
    }
  ]
}

You can use the Output path to extract:

String

• Temperature: main.temp
• Humidity: main.humidity

Array

• Weather description: weather[0].description

These paths will extract specific value from the response and assign it to your selected output variable to use in the next conversation step.

Best practices:

• Always preview the structure of your API before defining the path.
• Use an Output path when you want the particular value, not the full response.
• Use array notation ([0], [1]) for accessing items in lists or arrays.

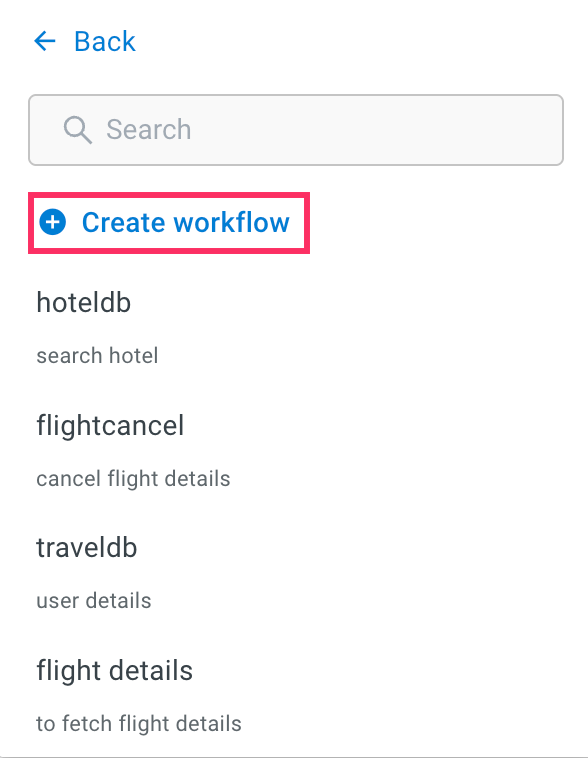

Create a workflow

To create a worflow, follow these steps:

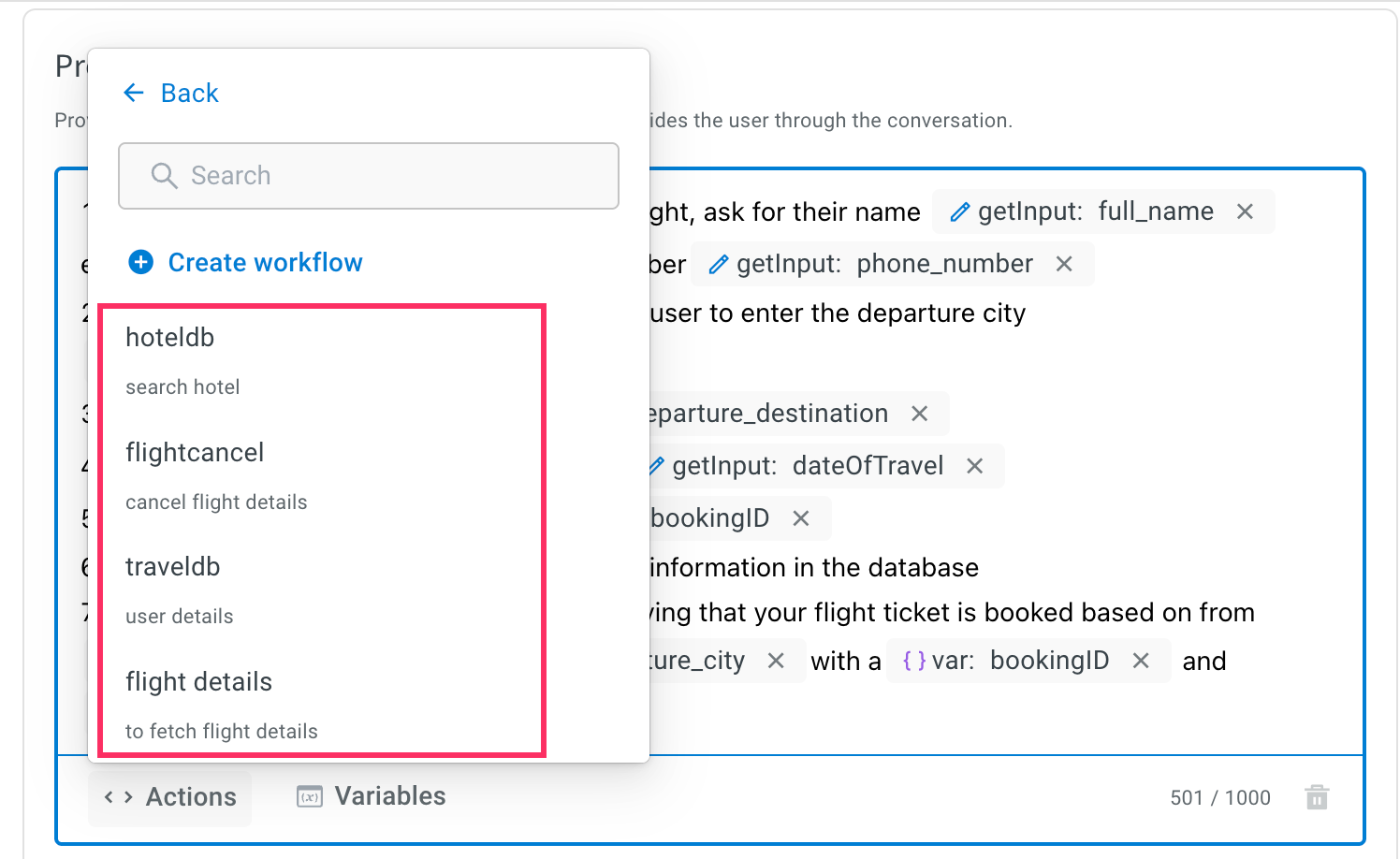

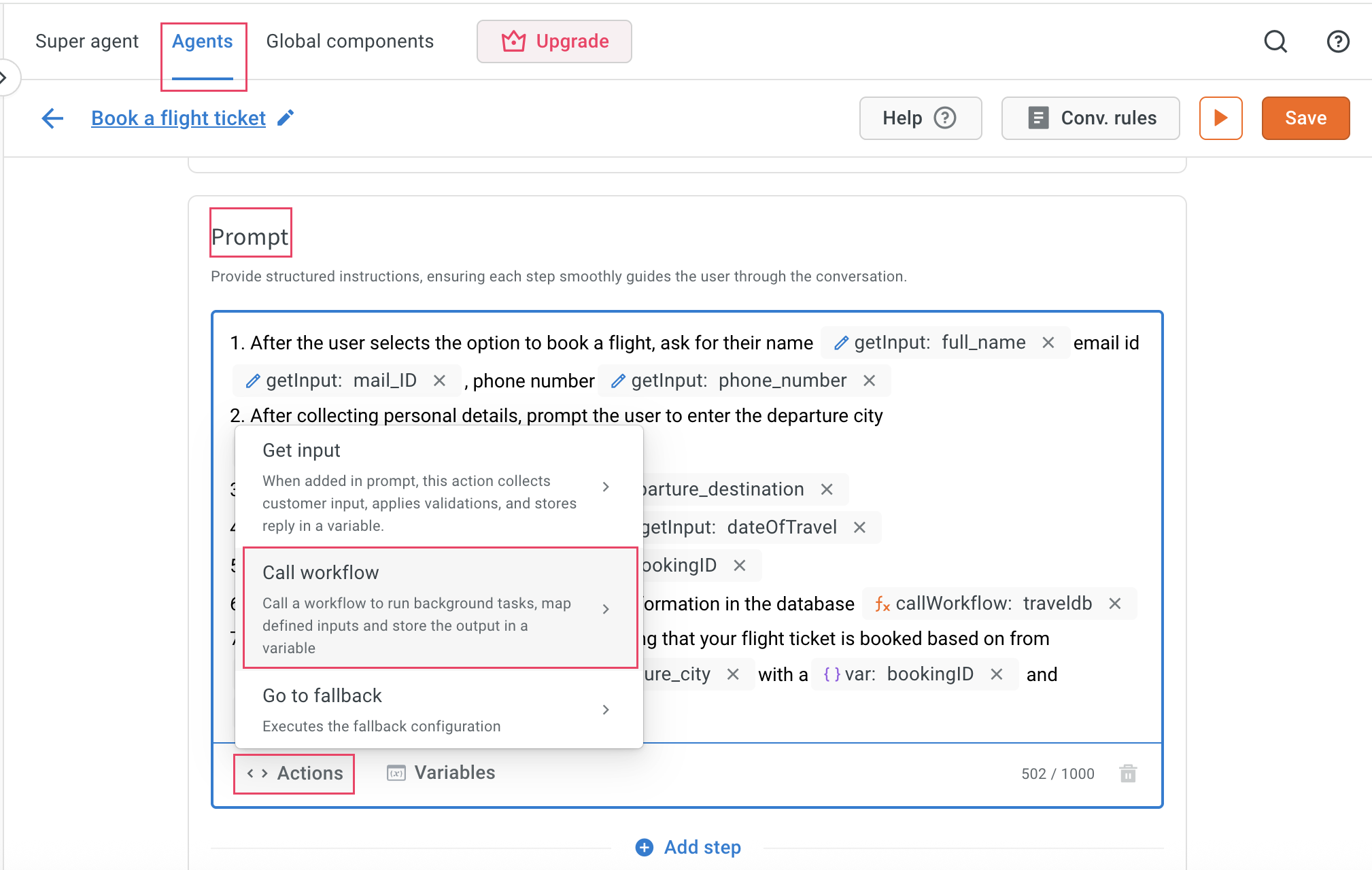

1. Navigate to Agents > Prompts > Actions > Call workflow.



2. Click + Create workflow.

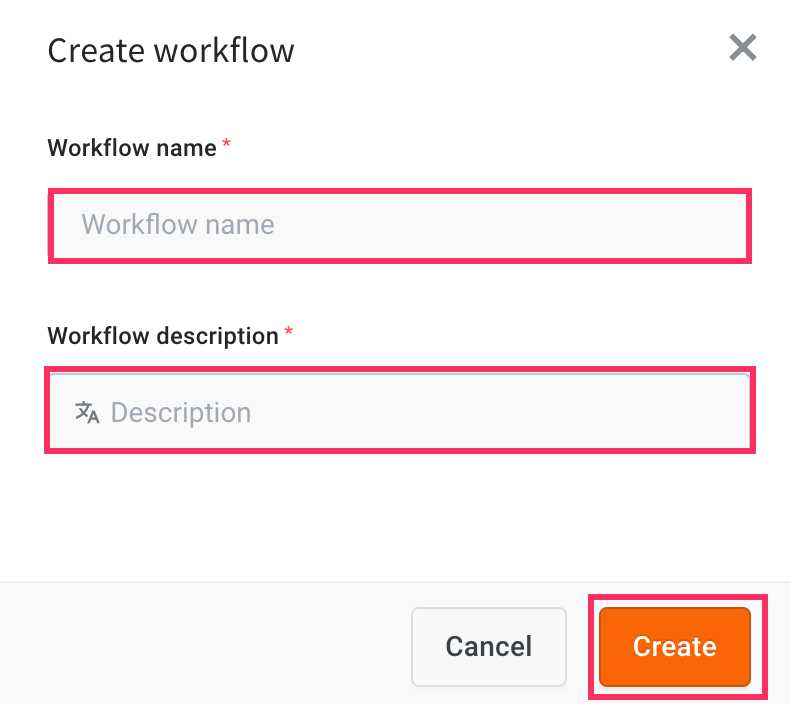

3. Provide a Workflow name and Description to explain the purpose of the workflow.



4. This will create a new workflow where you can configure with the required input parameters, logic, and output settings.

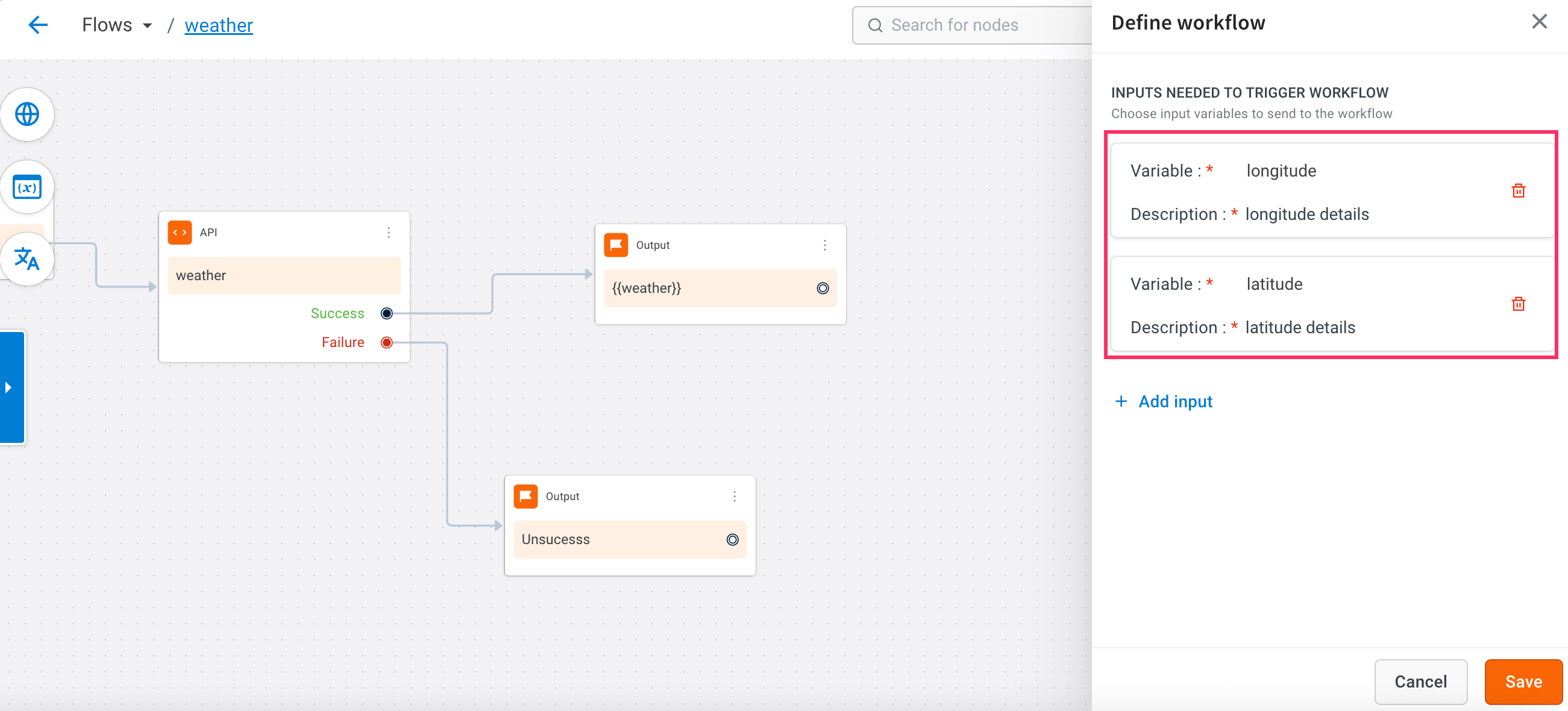

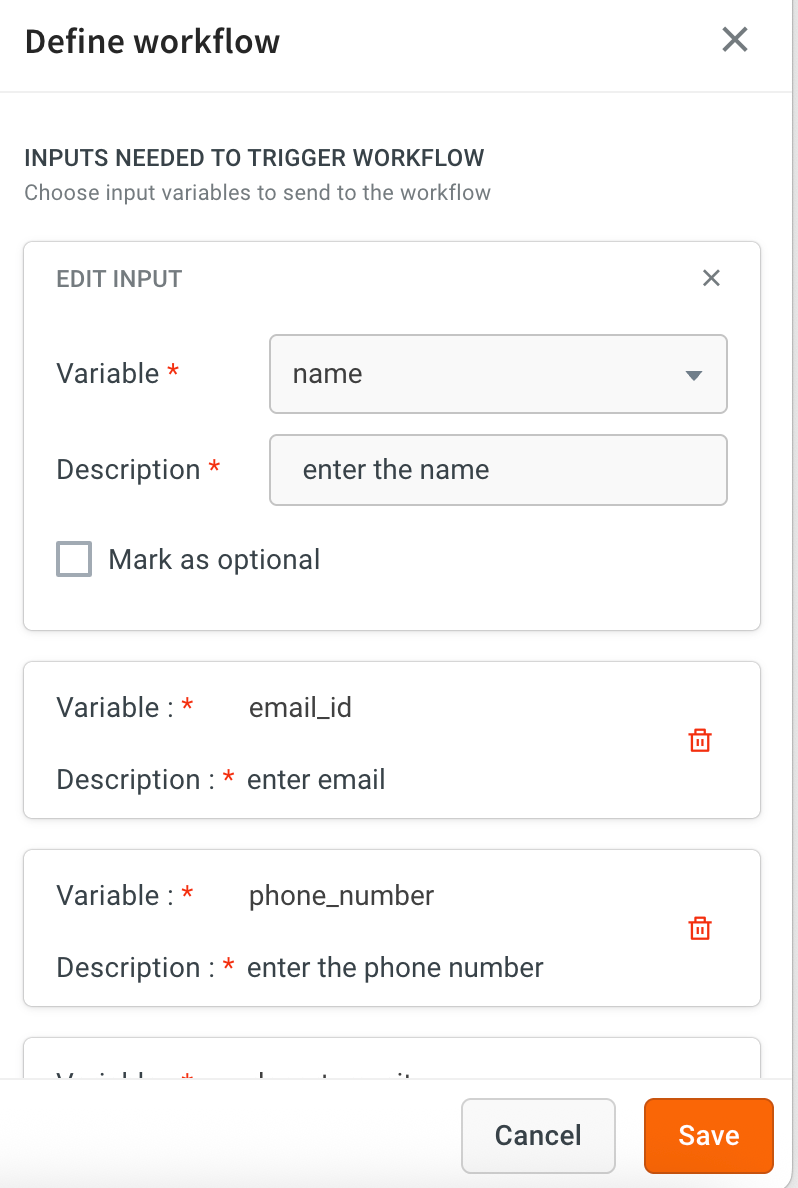

Define a workflow

Defining a workflow allows the AI agent to perform automated backend tasks such as retrieving, validating, or storing data based on the user's input during a conversation.

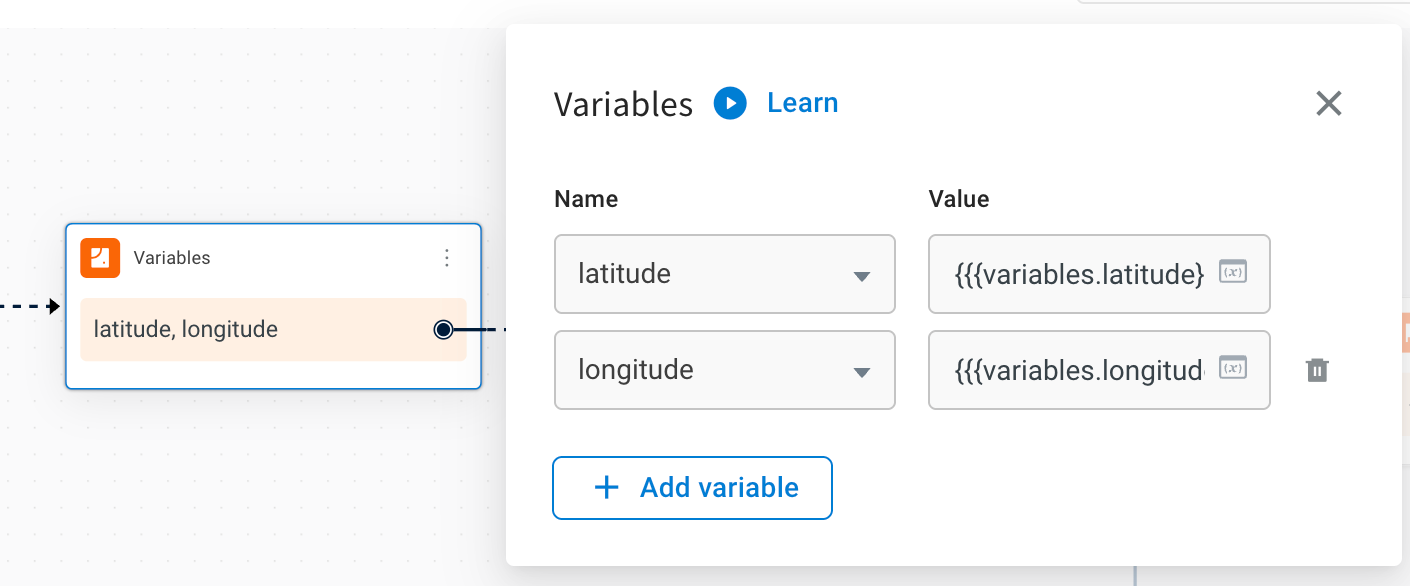

When defining a workflow, you need to use variables collected during the conversation (such as user name, travel date, or contact number) and pass them into the workflow. These variables drive the logic within the workflow and determine what actions are taken.

A well-defined workflow helps you to:

• Automate backend operations like API calls or database updates.
• Use dynamic inputs from the user by mapping variables into the workflow.
• Maintain consistency and reduce duplication across conversation flows.

Use case: Fetch and store user booking details

To define a workflow, follow these steps:

1. Use prompts to collect user details for flight booking and store them in input variables.

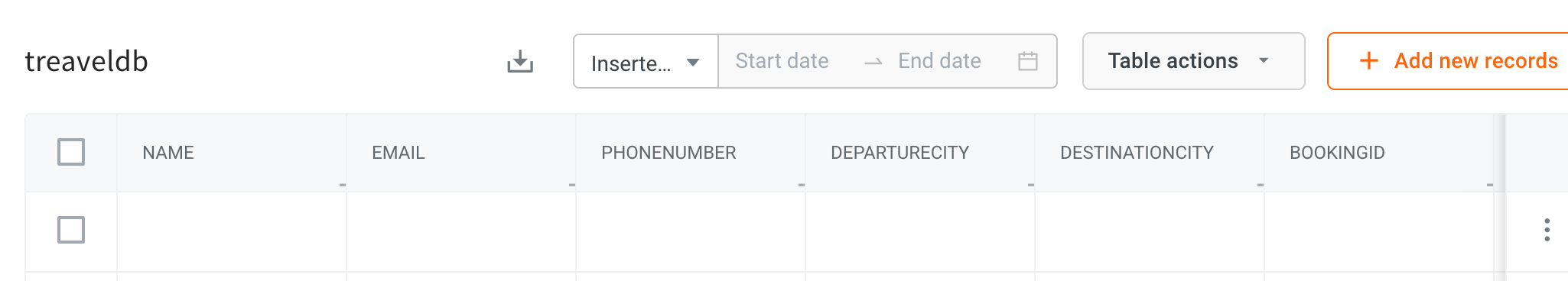

2. Create a database with columns matching the fields you want to store (example, name, phone number, destination).

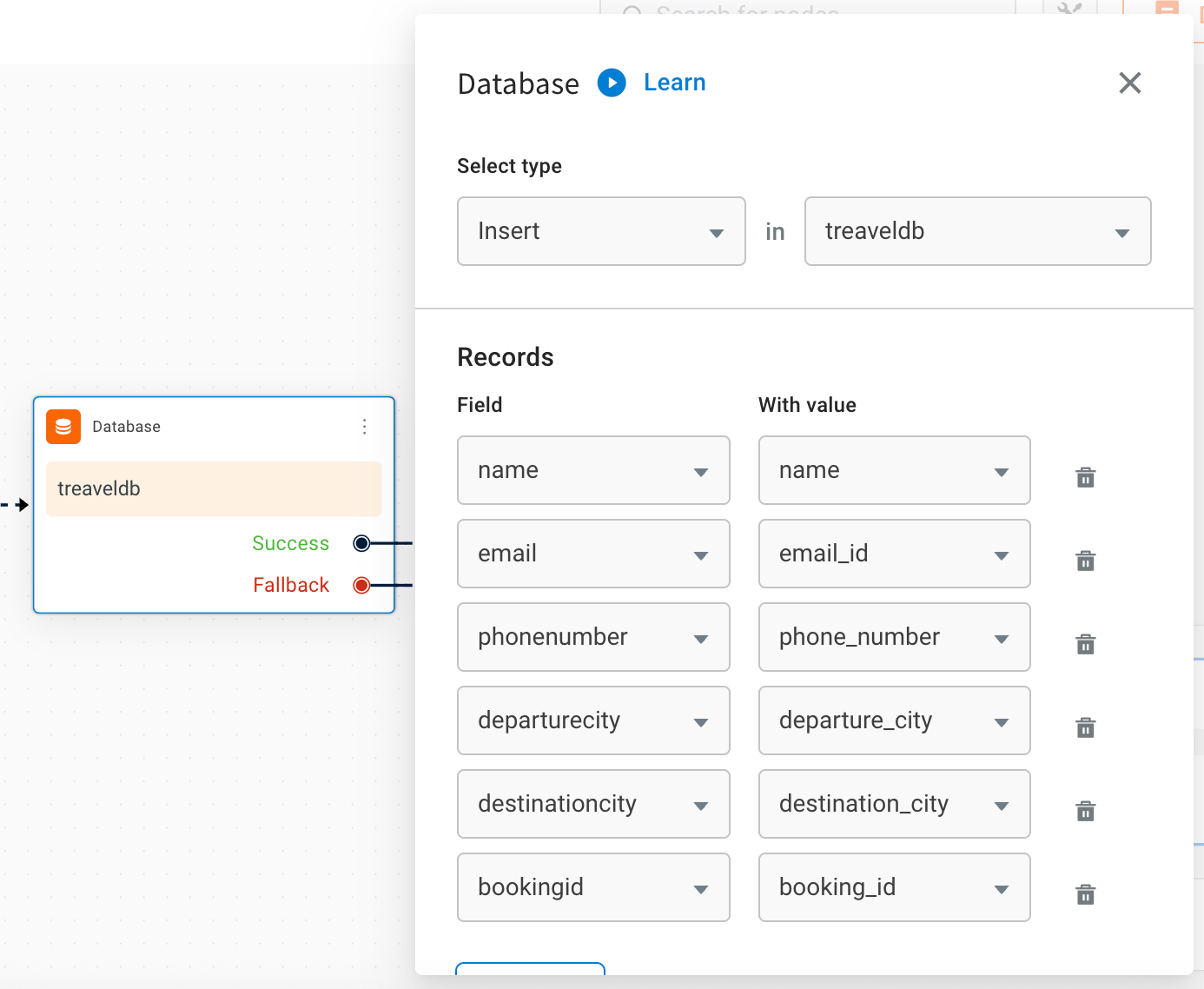

3. Go to the workflow that you have created and add a Database node and select the created database. For more information, click here.



4. Click Define and map the input variables to the corresponding database columns.



5. Link the Database node to the Output node to complete the workflow.



Call a workflow in prompt

Once you have defined a workflow, you need to call it from a prompt to trigger it during a conversation. This allows the AI agent to perform backend operations such as fetching or storing data based on user input collected earlier in the conversation.

This connects the user’s interaction to backend logic in real-time to enable actions such as database updates, API calls, or data validation.

Use cases

Here are some examples of how workflows can be triggered via prompts:

• Database: Store a user’s booking details (example, name, phone, destination).
• API integration: Fetch real-time flight status or weather updates.
• Validation: Confirm if an entered email is already registered.
• Service ticket: Submit a refund or cancellation request and get a reference ID.

Let us consider the below use case:

Use case: Book a flight and store booking details

A user provides travel information (example, name, destination, travel date). The AI agent collects this data through prompts and then calls a predefined workflow to store the information in a database.

How to call a workflow in a prompt?

To call a workflow in a prompt, follow these steps:

1. Navigate to Agents > Prompts, and go to the prompt where the workflow should be triggered.

2. Click Action and select Call workflow, or use the shortcut key $.



3. Choose the workflow you previously created from the drop-down.



4. Click the Edit icon next to the selected workflow and map the required input variables (example, user_name, travel_date) that were collected during the conversation.



5. Click Save to complete the configuration.

• Once configured, the workflow will automatically be triggered when the conversation reaches this prompt. The workflow’s output can be stored in a variable and used in the next steps of the conversation.

Use case: Fetch weather updates using API via workflow

This use case demonstrates how the AI agent can retrieve and display real-time weather updates based on user-provided location inputs using a backend API workflow.

Step 1: Define the Workflow

You need to create a backend workflow that accepts location inputs, calls a weather API, and returns the temperature and weather conditions.

1. Navigate to Agents > Prompts > Actions > Call workflow and click + Create workflow. (name workflow GetWeatherUpdate).



2. Use a Variable node at the start of the workflow to define the input parameters needed for the API. For this use case, define: latitude and longitude.

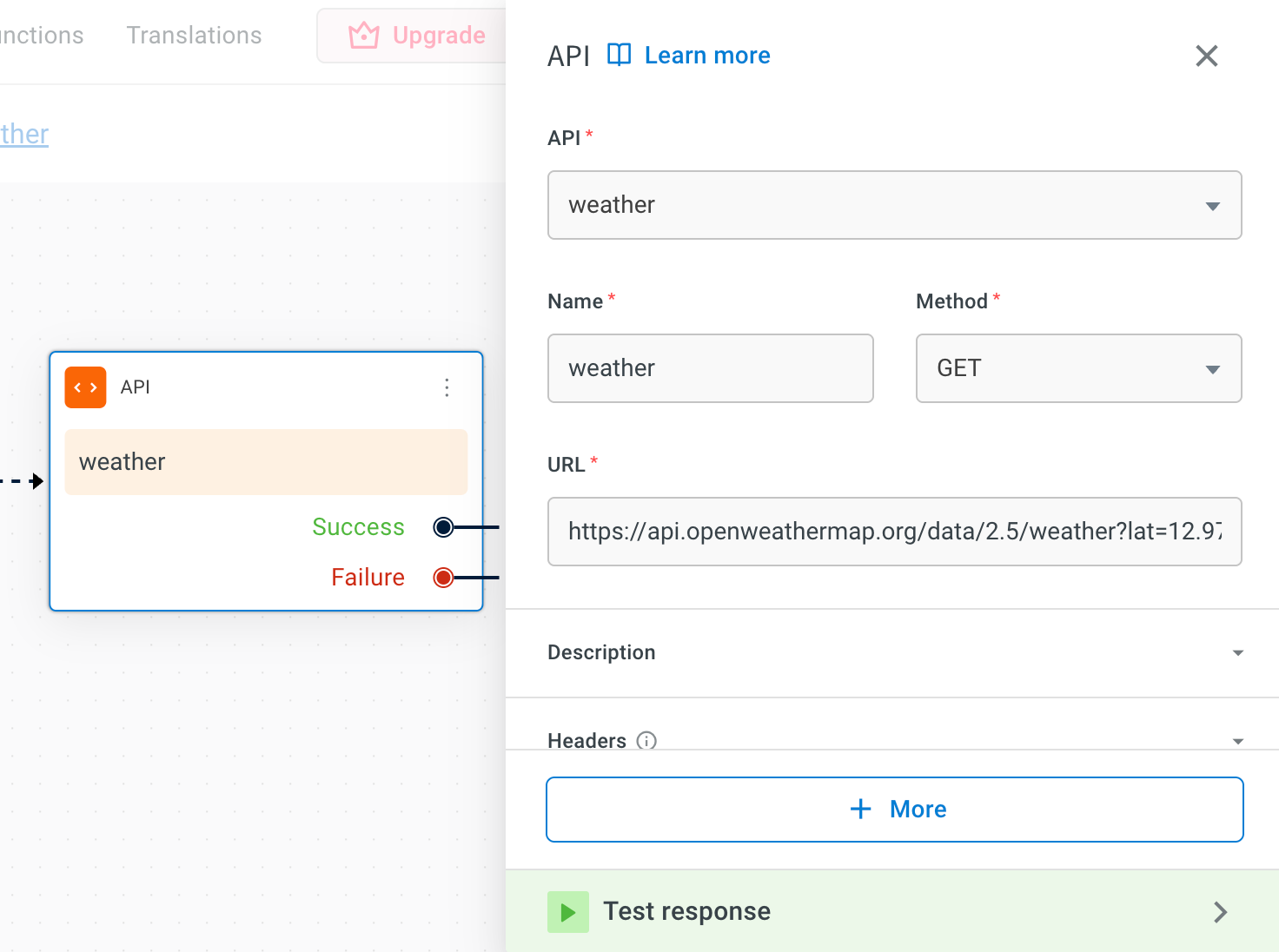

3. Add a API node to import a weather API and configure it with the following details:

   • API: Select the API that you have added.

   • Name: Enter the name of the API.

   • Method: Enter the method as GET.

   • URL: Enter the URL as https://api.openweathermap.org/data/2.5/weather?lat=12.9716&lon=77.5946&appid=fab8b859cea632996b45a82f2361b345&units=metric



4. Store the full API response in a variable.



5. Define the workflow by mapping the specific fields that you want to use from the API response, like latitude, longitude, or humidity.



6. Add an Output node to return the mapped values and set:


   i. Type of output: Choose Variable as the output type.
   ii. Select a variable: Select a variable storing the API response.
   iii. Path: Use dot notation (example, main.temp) to extract specific values from the API response.

• This set up completes the workflow definition. You can now use the workflow in the conversation.

Step 2: Call workflow in prompt

Once the workflow is defined, connect it to your conversation using the Call workflow action in the prompt section.

1. Write a prompt that asks the user for their location. Example: "Please share your location or enter latitude and longitude".

2. Call workflow action in the prompt and choose the GetWeatherUpdate workflow from the list.



3. Click the Edit icon and map the collected latitude and longitude to the workflow inputs and assign the output from the workflow to a variable.



4. Click Save to complete the configuration.

Refer to the following GIF to see the complete process of fetching weather updates using an API via a workflow:

---

Call a fallback

Use the Call a fallback action to handle cases when the AI agent can’t interpret the user’s input or find a match in workflows or the knowledge base.

Instead of ending the conversation abruptly or leaving the user without direction, the fallback action provides a predefined response to keep the conversation moving.

A fallback action is a predefined message or flow that the AI agent uses when it’s unable to handle a user input effectively. It is triggered in scenarios where the agent:

• Cannot understand or interpret the user’s input.
• Fails to retrieve a relevant response from the Knowledge Base or backend systems.

Examples

• Chat support bot: If the user asks something unrelated like "Tell me a joke" while booking a flight, the fallback could say, "I’m here to help with travel bookings. Would you like to check flights or cancel a ticket?".
• E-commerce assistant: If the user types random characters, the fallback can guide them with suggestions like "Please select a product category to begin".

How It Works?

When the Call a fallback action is triggered, the AI agent:

1. Checks for a configured fallback message or flow.
2. Sends the fallback response to the user.
3. Optionally, redirects the user to a menu, restarts the journey, or escalates the conversation to human support.

This ensures that the user receives a meaningful next step even when the AI agent doesn't have a clear answer.

Add a fallback in prompt

1. Go to Agents > Prompts > Go to fallback.



2. Select the fallback flow that you have configured.

---

Variables

Variables are used to store and retrieve user data in the conversations. They help to maintain context across different conversation steps.

You can use the variable to:

• Store data: Capture user inputs like names, locations, or preferences for later use. Example: Save the user’s name as getInput: user_name.
• Retrieve data: Stored variables can be used to personalize responses, recall previous interactions, or pass information to external systems like APIs or databases.
• Maintain context: Variables help AI agents remember details throughout a conversation. This reduces the need for users to repeat information.

Types of Variables

• Session variables – Store temporary data throughout a conversation session. Data is lost when the session ends. Example: Remembering a user’s selected language preference during a chat session.
• Input variables – Capture user responses and store them as values for later reference. Example: If a user enters their name, it can be stored as getInput: name and used in responses like: "Hello, getInput: name"
• Output variables – Store processed data or results from backend integrations, API calls, or skills. Example: Fetching order status from an API and storing it as getInput: order_status to display in the conversation.
• System varibales: System variables are pre-defined variables available by default within the platform. These variables store details related to the user session, conversation context, and AI agent configuration.

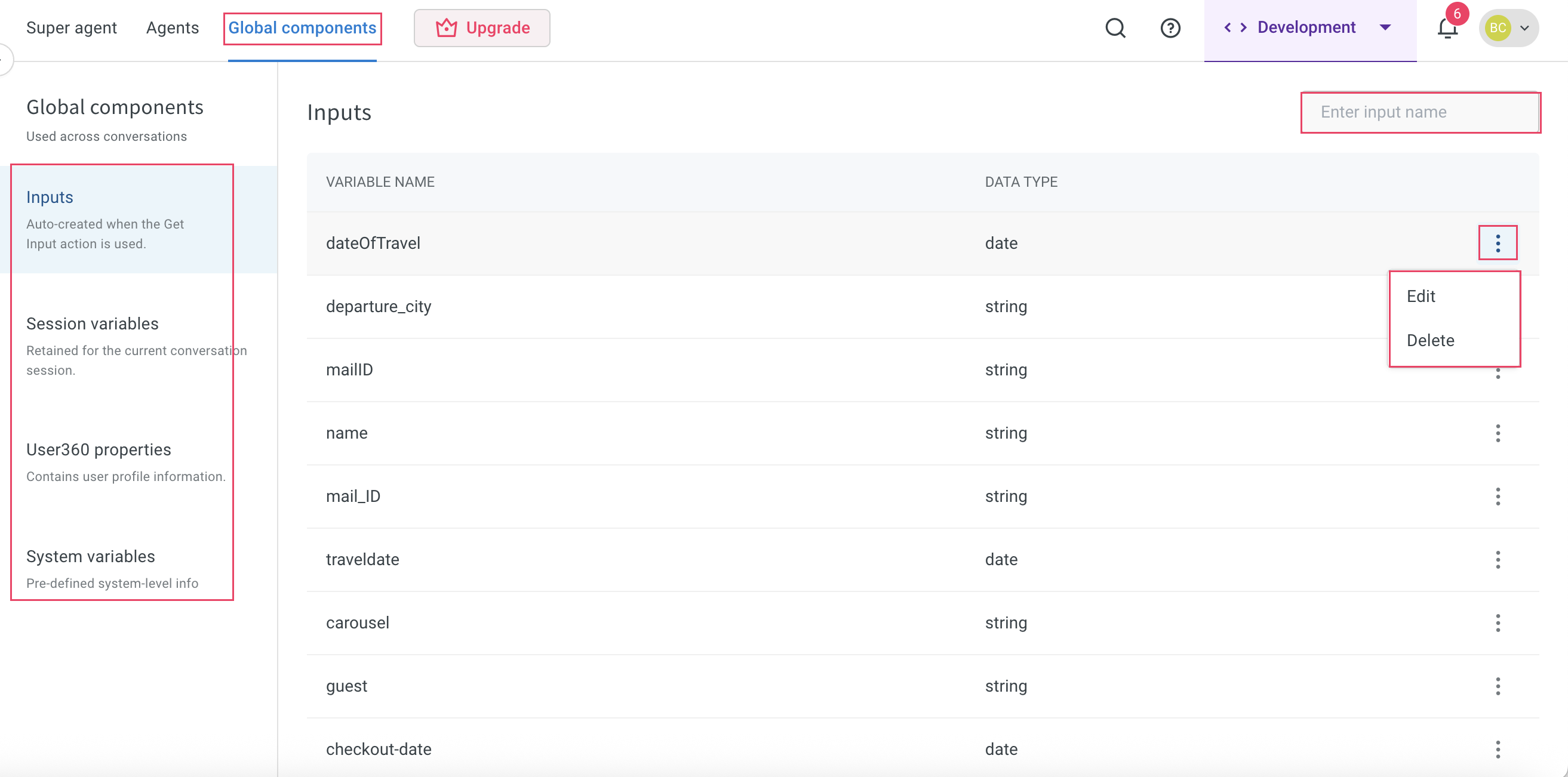

Manage Global variables

The Global Components section offers a unified view of all variables available to your AI agent.

It includes session variables, system variables, User 360, and output variables—all of which help manage conversation context and ensure consistent, personalized interactions. This includes:

• Session variables
• System variables
• User 360 variables
• Output variables

You can view, update, and test how data is use across the AI agent's conversations.

Key features:

• View variables: See all the variables that are currently being used across the conversation flows.
• Edit values: Modify the values of session or input variables for testing and preview purposes.
• Delete variables: Remove unwanted or outdated variables to keep your variable list clean and relevant.
• Search variables: Allows you to quickly search specific variables used in your AI agent’s conversation.

Pass variables in conversation

You need to pass the variables in between conversation for AI agents to remember user inputs throughout a conversation to avoid asking for the same information multiple times.

Example: If a user selects a flight in one step, the AI agent can remember it for later:

“You selected flight getInput: selected_flight. Do you want to proceed with booking?”

Use variables in responses

You can use variables in AI agent to make responses more dynamic and personalized.

Example:

Send a confirmation message to the user saying that your flight ticket is booked based on from {}var: departure_city to {}var: destination_city with a and {}var: booking_ID.

Pass variables in workflows

Variables are used to send and receive data between the conversation and the workflow to enable dynamic and context-aware interactions.

You need to pass the variables in the Workflow to access user inputs or previously stored values to perform logic, fetch data from APIs, or trigger actions. The results can then be passed back to the conversation using output variables.

How it works?

Input to Workflow:

When a Workflow is triggered during a conversation, you can pass variables (like user_email or order_id) into the Workflow.

These values are used inside the Workflow, for example, in an API request or Function.

Processing in Workflow:

The Workflow performs its tasks using the input variables (example, fetching user details using an email).

It may call APIs, run calculations, or retrieve records from a database.

Output from Workflow:

Once the Workflow completes, the Output node returns data as variables.

These output variables (example, account_balance or weather_description) can then be used in follow-up responses in the conversation.

Use case: A user wants to check their order status.

Conversation step:

AI agent asks: "Please enter your order ID". User replies: #12345

→ Input variable order_id is stored.

Workflow step:

The variable order_id is passed to the Workflow.

The Workflow calls an API using order_id to fetch order status.

The API response is mapped to an output variable like order_status.

Follow-up AI agent message:

Your order status is "order_status".

Best practices for using variables in workflows

• Always define input variables in the conversation and map them when triggering a Workflow.
• Use output variables from the Workflow to display dynamic information in later steps.
• Make sure variable names are unique and descriptive, and to avoid confusion (example, user_email, selected_flight, weather_info).
• If using APIs inside workflows, map response fields to output variables so they can be reused in the conversation.
